GPS Antenna Removal and Installation
Precautions: Precautions for Audio Visual / Navigation · Precautions for Body, Cab and Accessories · General safety (00)
Removal
1)Disconnect negative (–) cable at battery.
2)Remove instrument panel driver ornament and instrument panel center ornament.
3)Remove navigation unit.
4)Remove combination meter cluster panel and combination meter.

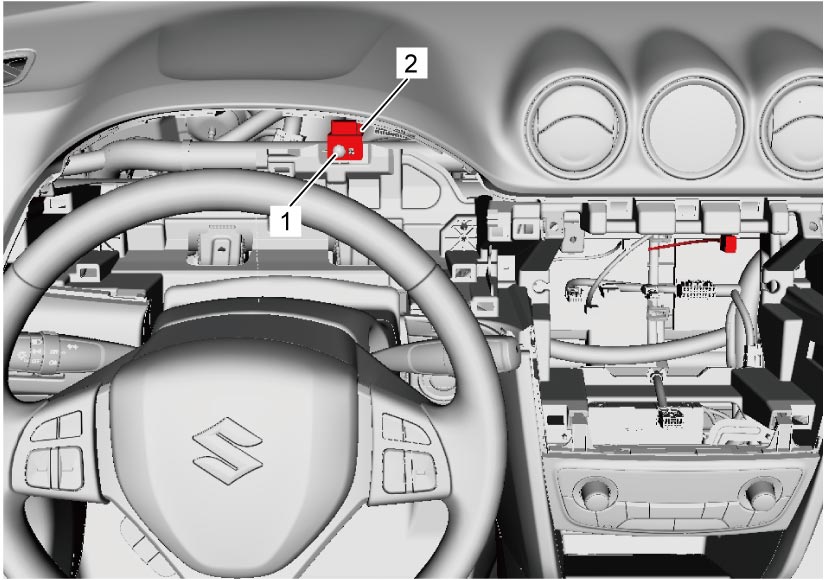

5)Remove screw (1) and then remove GPS antenna (2).
Installation
Reverse removal procedure.
