USB Socket Removal and Installation
Precautions: Precautions for Audio Visual / Navigation · Precautions for Body, Cab and Accessories · General safety (00)
Removal
1)Remove floor console front cover.

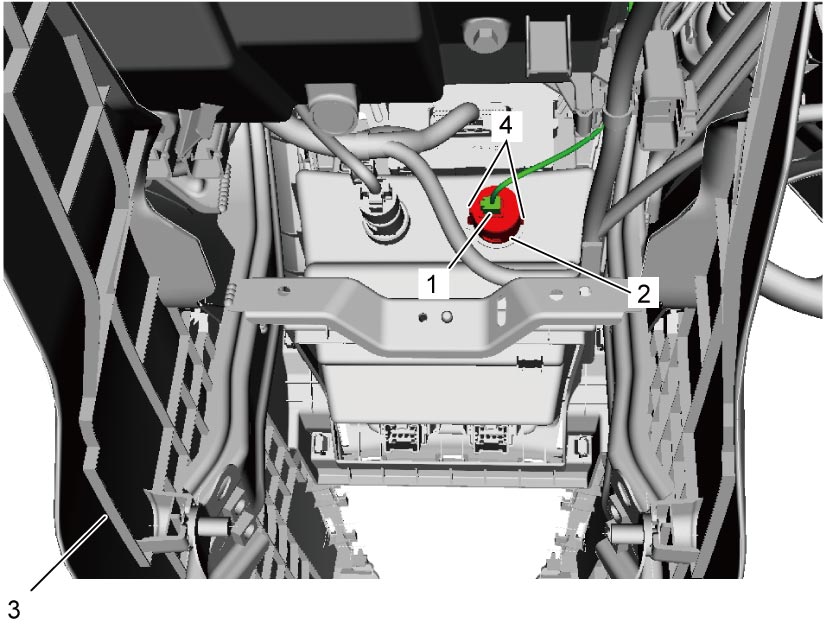

2)Disconnect USB socket connector (1), and then remove USB socket (2) from instrument main panel (3) while releasing locks (4).
