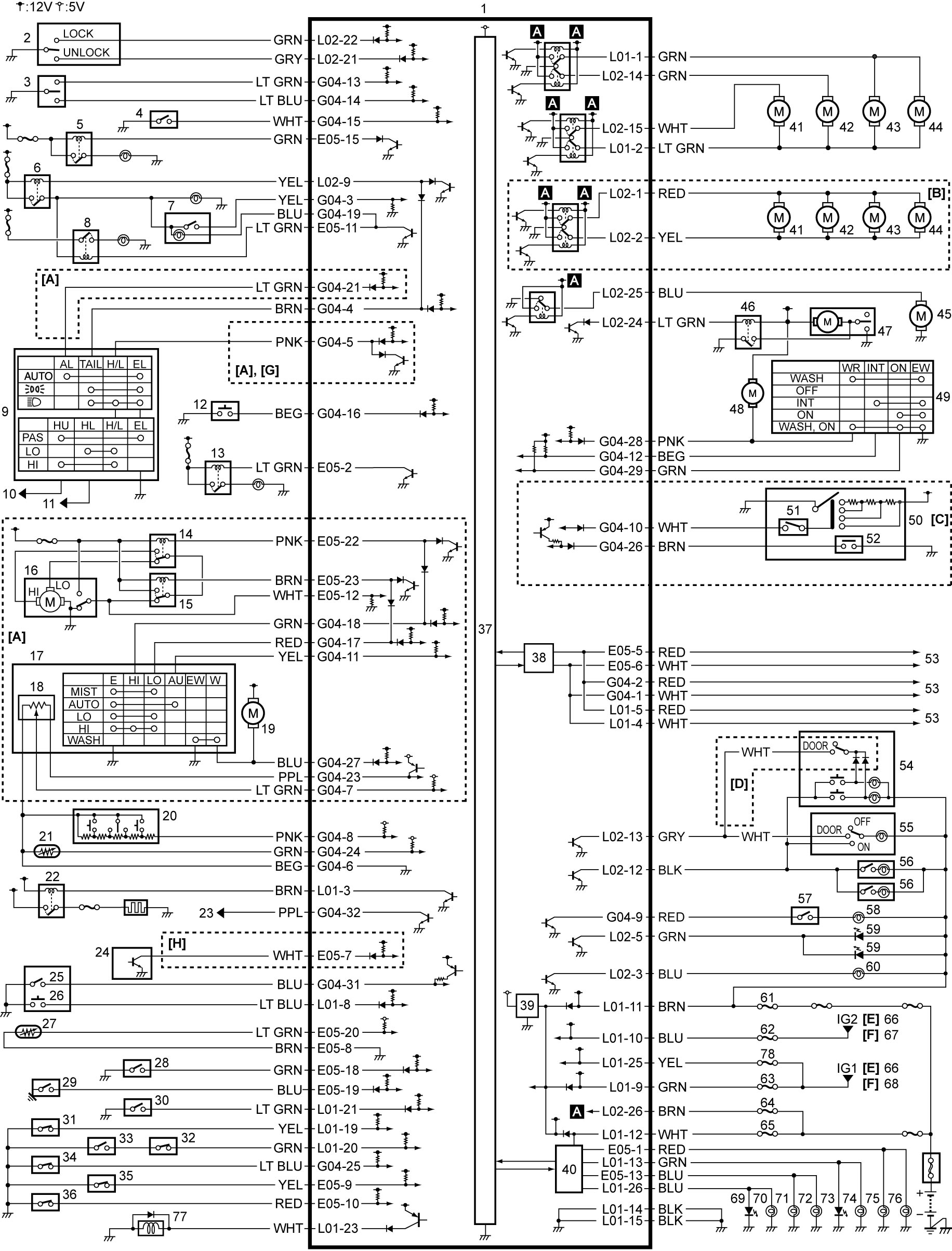

Body Electrical Control System Circuit Diagram
Precautions: Precautions for Diagnosing Trouble · Precautions for Control Systems · General safety (00)
| [A]: | LED headlight model | 22. | Rear defogger relay | 51. | A/C switch |
| [B]: | Deadlock model | 23. | Audio unit / Navigation (if equipped) | 52. | Rear defogger switch |
| [C]: | Manual A/C model | 24. | SDM | 53. | Each control module
•M16A model: CAN Communication System Circuit Diagram:M16A Model
•K14C model: CAN Communication System Circuit Diagram:K14C Model •D16AA model: CAN Communication System Circuit Diagram:D16AA Model |
| [D]: | Overhead console model | 25. | FAR/NEAR setting switch (RBS model) | 54. | Spot light |
| [E]: | Ignition switch model | 26. | RBS OFF switch (RBS model) | 55. | Rear dome light |
| [F]: | Keyless push start model | 27. | Outside air temperature sensor | 56. | Vanity light (if equipped) |
| [G]: | Halogen headlight model with DRL | 28. | Brake fluid level switch | 57. | Glove box light switch (if equipped) |
| [H]: | RBS model | 29. | Oil pressure switch | 58. | Glove box light (if equipped) |
| 1. | BCM | 30. | Parking brake switch | 59. | Foot light (if equipped) |
| 2. | Power door lock switch | 31. | Driver seat belt buckle switch | 60. | Luggage compartment light (if equipped) |
| 3. | Turn signal switch | 32. | Passenger seat belt buckle switch (if equipped) | 61. | “DOME” fuse |
| 4. | Hazard warning switch | 33. | Seat belt reminder sensor (if equipped) | 62. | “WIP” fuse |
| 5. | DRL relay (if equipped) | 34. | Rear left seat belt buckle switch (if equipped) | 63. | “MTR” fuse |
| 6. | Tail light relay | 35. | Rear center seat belt buckle switch (if equipped) | 64. | “D/L” fuse |
| 7. | Front fog light switch (if equipped) | 36. | Rear right seat belt buckle switch (if equipped) | 65. | “HAZ” fuse |
| 8. | Front fog light relay (if equipped) | 37. | CPU | 66. | Ignition switch |
| 9. | Lighting switch | 38. | CAN driver | 67. | IG2 relay |
| 10. | Headlight HI relay | 39. | Power supply circuit | 68. | IG1 relay |
| 11. | Headlight LO relay | 40. | Turn signal circuit | 69. | Door mirror turn signal light (L) (if equipped) |
| 12. | Rear fog light switch (if equipped) | 41. | Driver door lock actuator | 70. | Rear turn signal light (L) |
| 13. | Rear fog light relay (if equipped) | 42. | Passenger door lock actuator | 71. | Side turn signal light (L) (if equipped) |
| 14. | Windshield wiper HI/LO relay | 43. | Rear door lock actuator (L) | 72. | Front turn signal light (L) |
| 15. | Windshield wiper relay | 44. | Rear door lock actuator (R) | 73. | Door mirror turn signal light (R) (if equipped) |
| 16. | Windshield wiper motor | 45. | Rear end door opener actuator | 74. | Rear turn signal light (R) |
| 17. | Windshield wiper and washer switch | 46. | Rear wiper relay | 75. | Side turn signal light (R) (if equipped) |
| 18. | Windshield wiper interval adjustment switch | 47. | Rear wiper motor | 76. | Front turn signal light (R) |
| 19. | Windshield washer motor | 48. | Rear washer motor | 77. | Shift lock solenoid (A/T model / twin clutch system model) |
| 20. | Driving mode switch (4WD model) | 49. | Rear wiper and washer switch | 78. | “BACK” fuse (A/T model) |
| 21. | Evaporator temperature sensor (if equipped) | 50. | HVAC control unit |

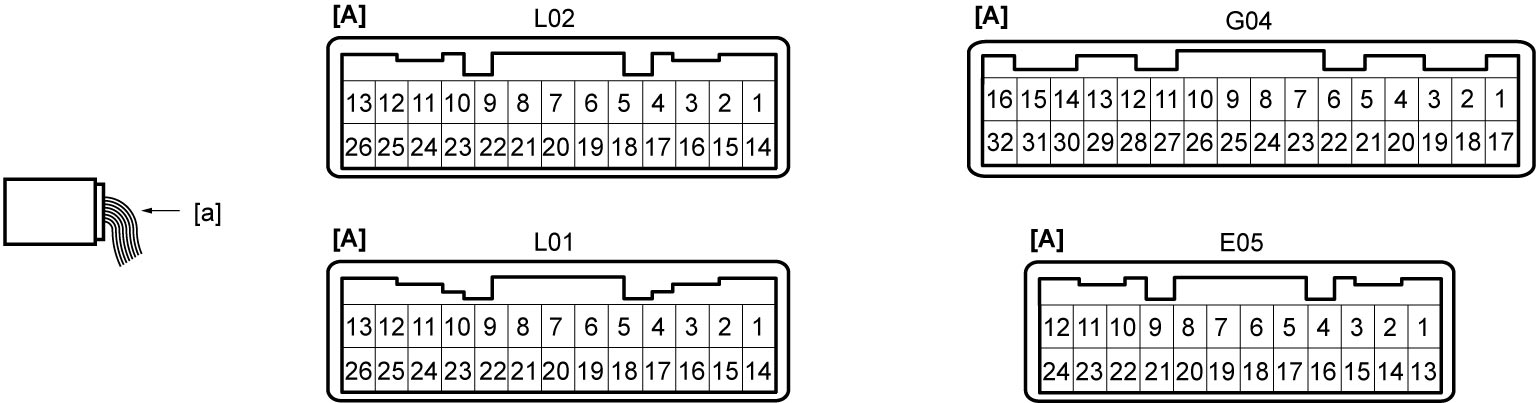

Terminal Arrangement of BCM Connector
NOTE:
For circuit name and terminal voltage, refer to Inspection of BCM and Its Circuits.
| [A]: | BCM connector (View: [a]) |
