BCM Removal and Installation
Precautions: Precautions for Diagnosing Trouble · Precautions for Control Systems · General safety (00)
LHD
Removal
1)Disconnect negative (–) cable at battery.
2)Remove driver side instrument panel undercover.

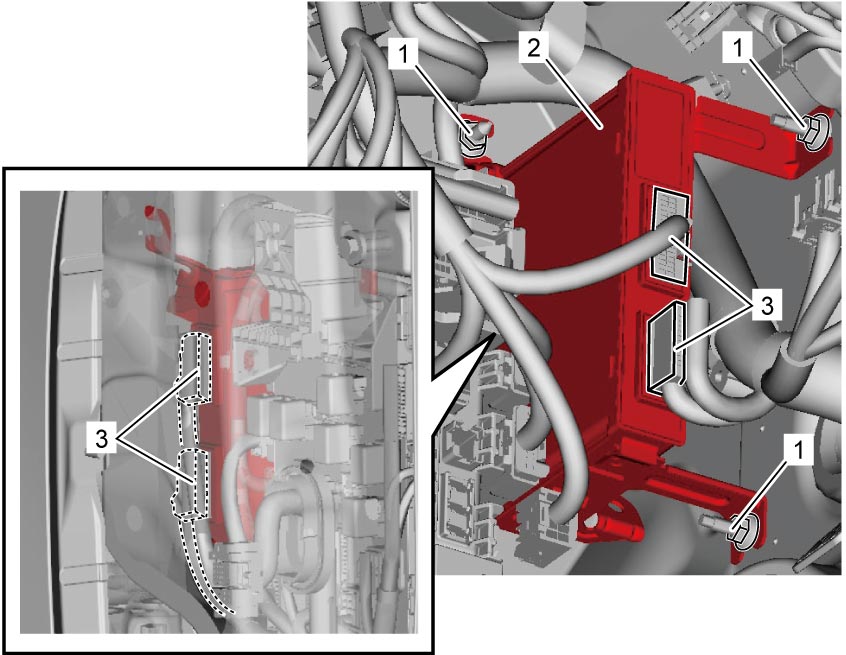

3)Remove nuts (1), and then remove BCM (2).
4)Disconnect connectors (3) and hood lock release cable from BCM.
RHD
Removal
1)Remove HVAC unit.
•Non-A/C model:
•Manual A/C model:
•Auto A/C model:
•Manual A/C model:
•Auto A/C model:

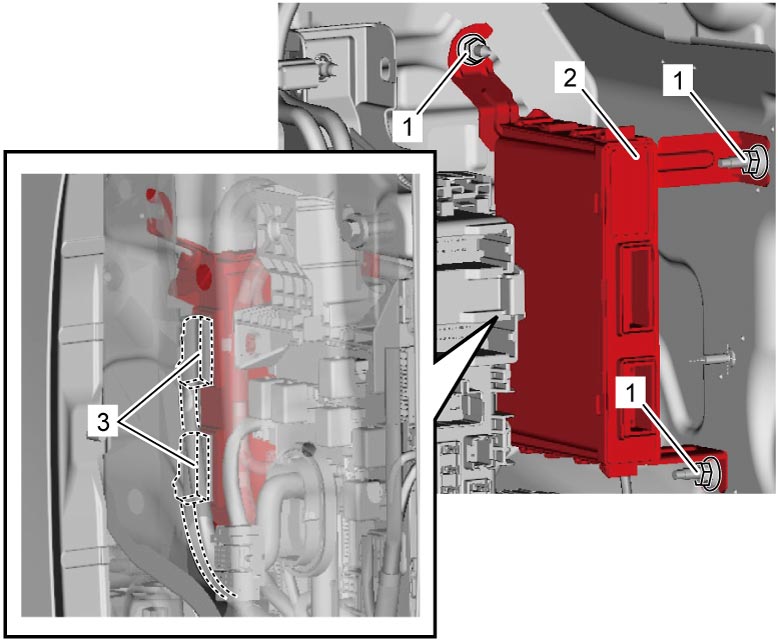

2)Remove nuts (1), and then remove BCM (2).
3)Disconnect connectors (3) from BCM.
