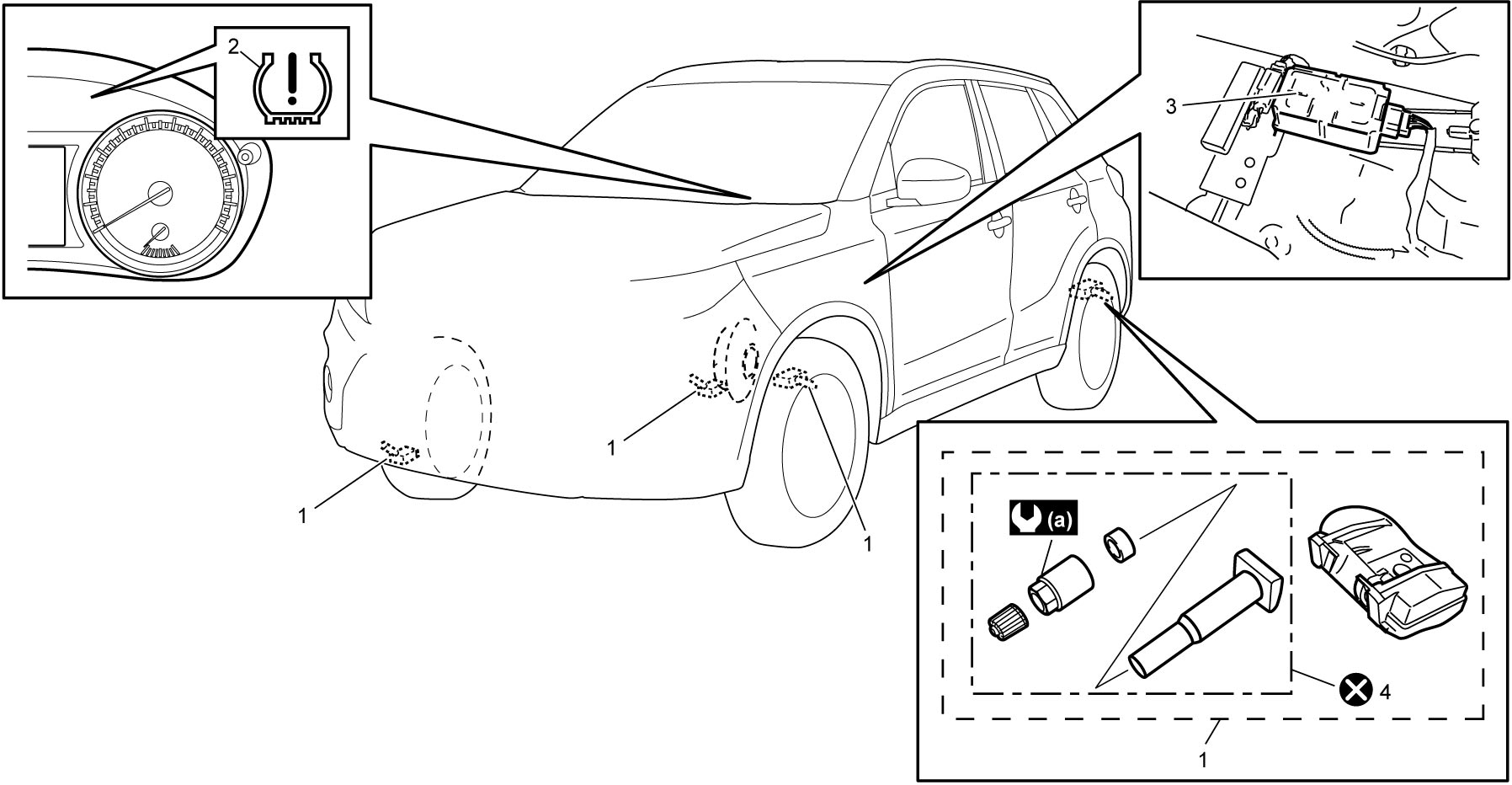

TPMS Component Location

Precautions: Precautions for Diagnosing Trouble · Precautions for Control Systems · General safety (00)

1.	Tire pressure sensor	3.	TPMS control module	:	7.5 N·m (0.76 kgf-m, 5.5 lbf-ft)
2.	Low tire pressure warning light	4.	TPMS seal set	:	Do not reuse.
