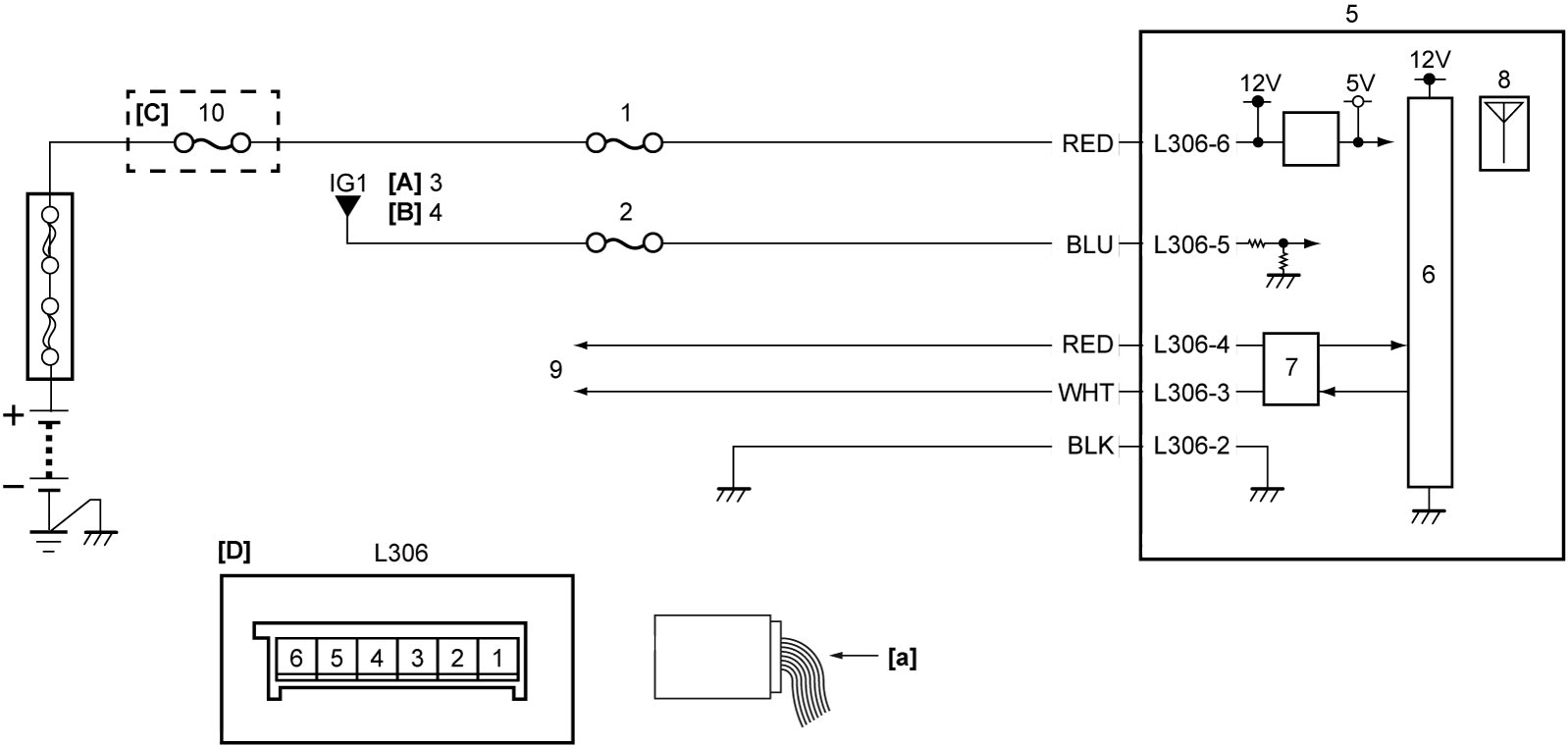

TPMS Circuit Diagram
Precautions: Precautions for Diagnosing Trouble · Precautions for Control Systems · General safety (00)
| [A]: | Ignition switch model | 2. | “CRUISE” fuse | 7. | CAN driver |
| [B]: | Keyless push start model | 3. | Ignition switch | 8. | Receiver |
| [C]: | D16AA model | 4. | IG1 relay | 9. | Each control module
•M16A model: CAN Communication System Circuit Diagram:M16A Model
•K14C model: CAN Communication System Circuit Diagram:K14C Model •D16AA model: CAN Communication System Circuit Diagram:D16AA Model |
| [D]: | TPMS control module connector (View: [a]) | 5. | TPMS control module | 10. | “BTRY” fuse |
| 1. | “BCM” fuse | 6. | CPU |
