TPMS Control Module Removal and Installation

Precautions: Precautions for Diagnosing Trouble · Precautions for Control Systems · General safety (00)

Removal

1)Disconnect negative (–) cable at battery.

2)Remove center console box.

3)Remove mid inside antenna (if equipped).

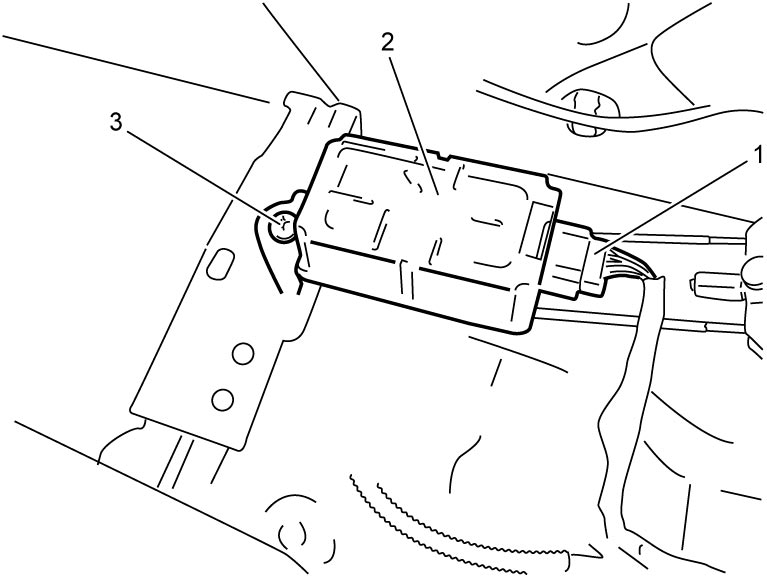

4)Disconnect TPMS control module connector (1).

5)Remove screw (3), and then remove TPMS control module (2).

Installation

Reverse removal procedure noting the following point.

•If TPMS control module is replaced, perform Registration Procedure for Tire Pressure Sensor ID Code.
