Keyless Start Control Module Removal and Installation
Precautions: Precautions for Diagnosing Trouble · Precautions for Replacing Remote Controller · Precautions for Remote Controller Disposal · Precautions for Replacing Keyless Start Control Module · Precautions for Control Systems · General safety (00)
Removal
1)Disconnect negative (–) cable at battery.
2)For LHD, remove passenger side instrument panel undercover.
For RHD, remove driver side instrument panel undercover.
For RHD, remove driver side instrument panel undercover.

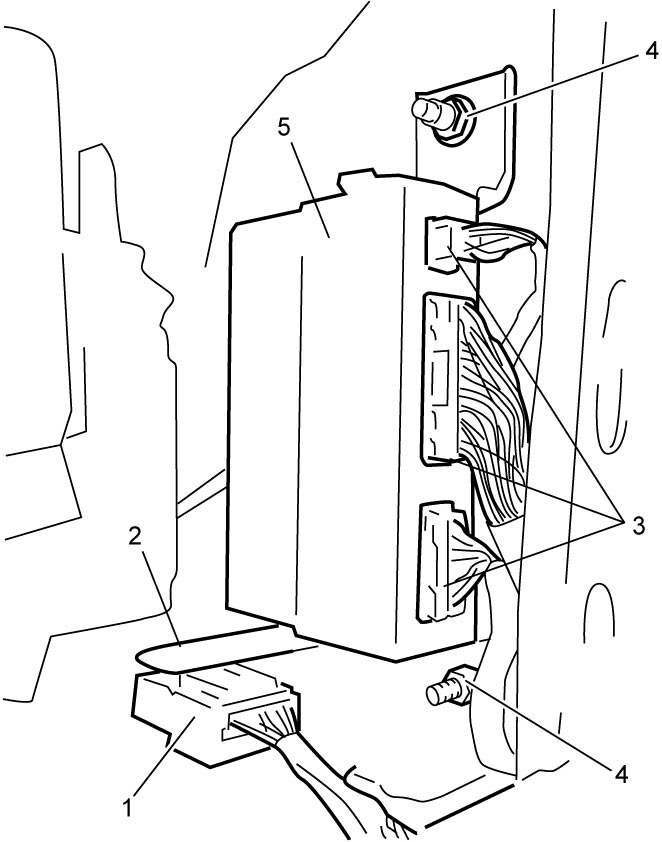

3)Disconnect instrument panel harness connector (1) and floor harness clamp from keyless stat control module bracket (2).
4)Disconnect keyless start control module connectors (3).
5)Remove nuts (4), and then remove keyless start control module (5).
Installation
Reverse removal procedure noting the following points.
•Tighten keyless start control module nuts to specified torque.
•If keyless start control module is replaced, perform Keyless Start Control Module Registration.
•If keyless start control module is replaced, perform Keyless Start Control Module Registration.
