DTC P1335 / P1358
Precautions: Precautions for Diagnosing Trouble · Precautions for Servicing ENG A-STOP System · Precautions for Replacing ENG A-STOP Control Module · Precautions for Control Systems · General safety (00)
DTC Detecting Condition and Trouble Area
| DTC detecting condition | Trouble area |
|---|---|
|
P1335: ENG A-STOP DC-DC Converter “B” Performance DC/DC converter input signal voltage does not change from the upper limit for more than specified time. |
•DC/DC converter circuit / connector
•DC/DC converter •ENG A-STOP control module |
|
P1358: ENG A-STOP DC-DC Converter “B” Output Circuit Short to Ground While ignition is “OFF”, DC/DC converter input signal voltage does not change from the lower limit for more than specified time. |

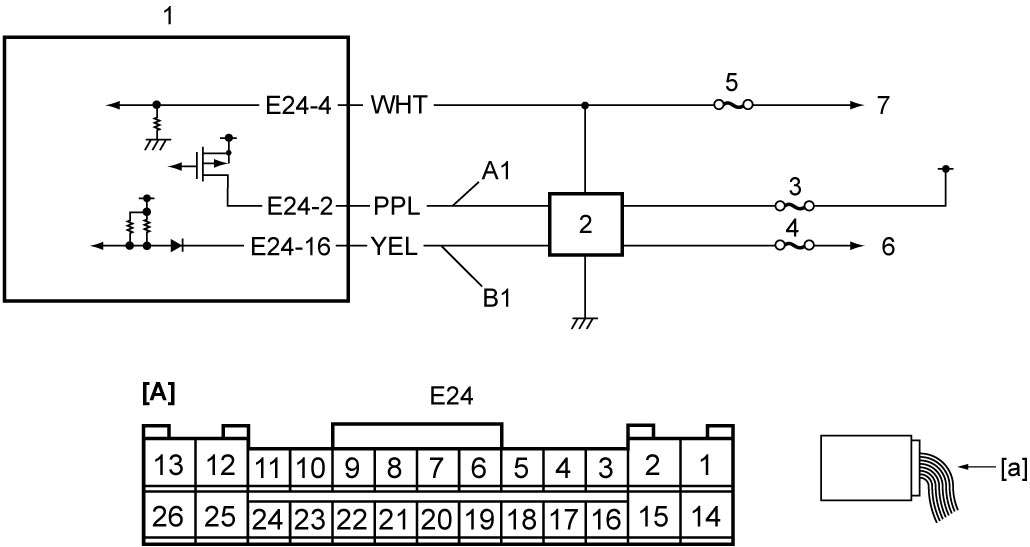

Circuit Diagram
| [A]: | ENG A-STOP control module connector (View: [a]) | 2. | DC/DC converter | 6. | To TCM |
| A1: | DC/DC converter ON signal circuit | 3. | “DCDC2” fuse | 7. | To ignition switch (ignition switch model) or IG1 relay (keyless push start model) |
| B1: | DC/DC converter diagnosis signal circuit | 4. | “T/M5” fuse | ||
| 1. | ENG A-STOP control module | 5. | “IG1 SIG” fuse |
DTC Confirmation Procedure
P1335
1)Set ignition “ON”.
P1358
1)Set ignition “ON”.
2)Set ignition “OFF”.
DTC Troubleshooting
| Step | Action | Yes | No |
|---|---|---|---|
| 1 |
DC/DC converter diagnosis signal circuit check
1)Set ignition “OFF”.
2)Disconnect DC/DC converter and “E24” connectors.
3)Check for proper terminal connection to DC/DC converter and “E24” connectors.
4)If connections are OK, check the following points.
•Resistance “B1” circuit: less than 1 Ω
•Resistance between “B1” circuit and ground: infinity •Resistance between “B1” circuit terminal and other terminal at DC/DC converter connector: infinity •Voltage of “B1” circuit: approx. 0 V (When ignition is “ON”) Is check result OK?
|
Go to Step 2.
|
Repair or replace defective wire harness.
|
| 2 |
DC/DC converter power supply and ground circuit check
1)Check DC/DC converter power supply and ground circuits.
Is check result OK?
|
Go to Step 3.
|
Repair or replace defective wire harness.
|
| 3 |
DTC check
1)Replace DC/DC converter.
2)Perform DTC Confirmation Procedure, and recheck for DTC.
Is DTC P1335 or P1358 still detected?
|
Replace ENG A-STOP control module and recheck DTC.
|
End.
|
