DC/DC Converter Removal and Installation (A/T Model)

Precautions: Precautions for Diagnosing Trouble · Precautions for Servicing ENG A-STOP System · Precautions for Replacing ENG A-STOP Control Module · Precautions for Control Systems · General safety (00)

Removal
1)Disconnect negative (–) cable at battery.
2)Remove instrument panel undercover (driver side). icon

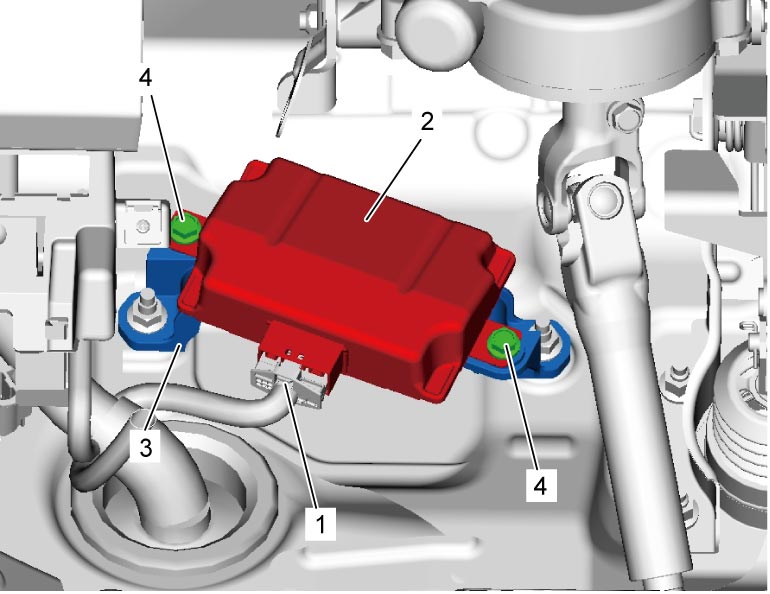

3)Disconnect connector (1) from DC/DC converter.
4)Remove DC/DC converter (2) from its bracket (3) by removing bolts (4).
5)Remove DC/DC converter bracket, if necessary.
Installation
Reverse removal procedure noting the following points.

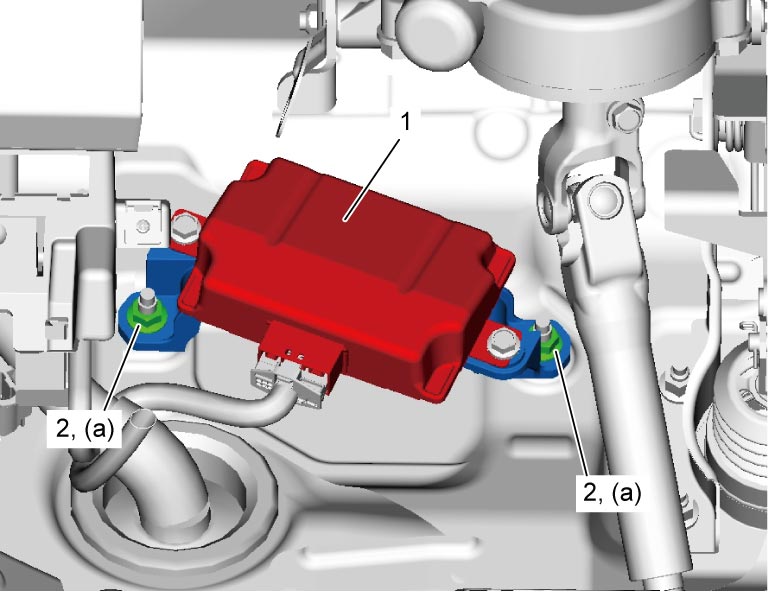

•Install DC/DC converter (1) to dash panel as shown in figure.
•Tighten DC/DC converter bracket nuts (2) to specified torque.
Tightening torque
DC/DC converter bracket nut (a): 9.0 N·m (0.92 kgf-m, 7.0 lbf-ft)
