Suzuki Vitara (LY) 2016-2017 · Service Manual Repair Instructions

ENG A-STOP OFF Switch Removal and Installation

Precautions: Precautions for Diagnosing Trouble · Precautions for Servicing ENG A-STOP System · Precautions for Replacing ENG A-STOP Control Module · Precautions for Control Systems · General safety (00)

Removal
1)Remove switch bezel. icon
2)Disconnect ENG A-STOP OFF switch connector.

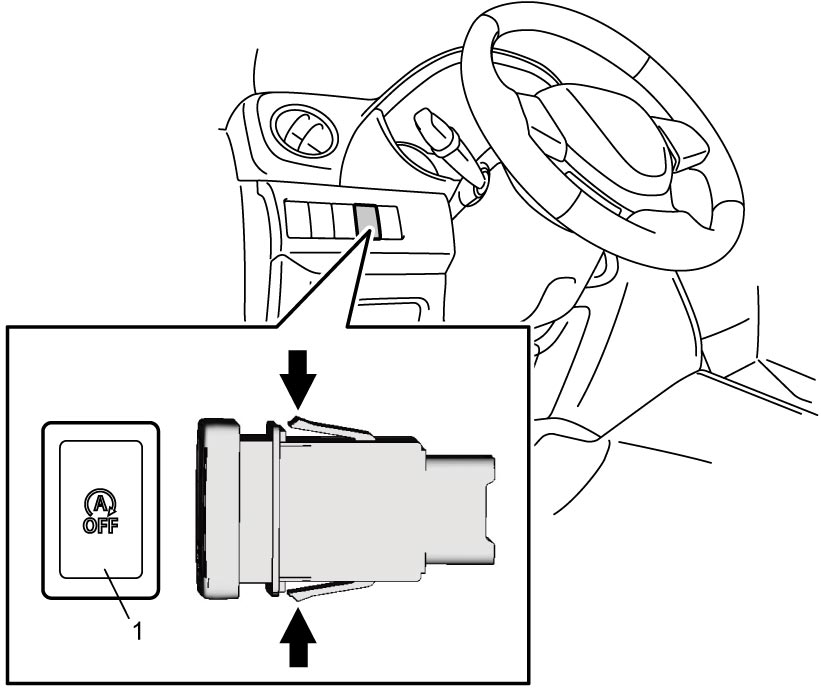

3)Remove ENG A-STOP OFF switch (1) from switch bezel.
Installation
Reverse removal procedure.
