FRONT BUMPER REINFORCEMENT
REMOVAL
1. Remove fascia, (Refer to 13 - FRAME & BUMPERS/BUMPERS/FRONT FASCIA - REMOVAL).

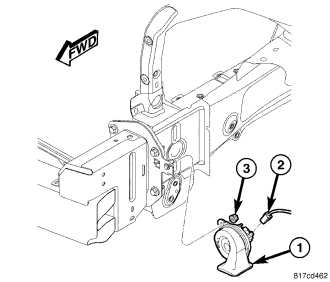

2. Disconnect wire connector (2) and remove horn (1). (Refer to 8 - ELECTRICAL/HORN/HORN - REMOVAL)

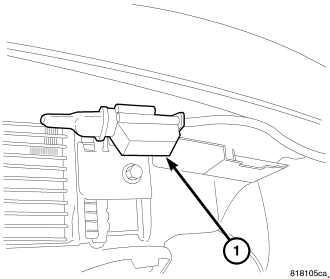

3. Remove wire harness push pin fastener (1).
4. Remove wire harness (1) from bottom of bumper reinforcement.

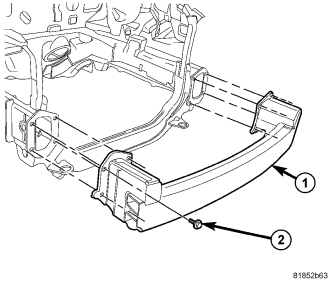

5. Remove 8 fasteners (2) from bumper reinforcement (1).
INSTALLATION
1. Install fasteners (2) and tighten to 23 N·m (17 ft. lbs.).
2. Connect wire connector (2) and install horn (1). (Refer to 8 - ELECTRICAL/HORN/HORN - INSTALLATION)
3. Install wiring harness push pin.
4. Install wire connector (1) to bumper reinforcement.
5. Install front fascia. (Refer to 13 - FRAME & BUMPERS/BUMPERS/FRONT FASCIA - INSTALLATION)
