HALF SHAFT-RIGHT REAR
REMOVAL
1. Raise vehicle on a hoist.
2. Remove the rear tires.
3. Drain the fluid from the rear driveline module.
4. Remove the rear propeller shaft. (Refer to 3 - DIFFERENTIAL & DRIVELINE/PROPELLER SHAFT - REMOVAL)

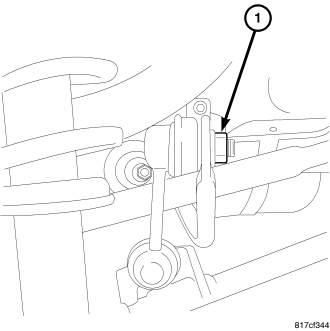

5. Remove right side sway bar nut (1) if equipped.

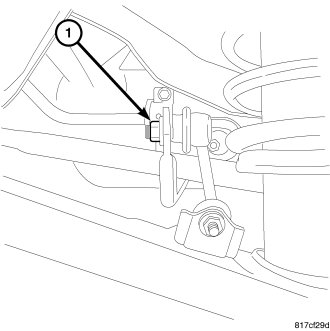

6. Remove left side sway bar nut (1) if equipped.

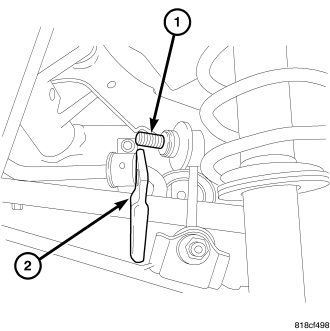

7. Roll sway bar (2) down and out of the way if equipped.

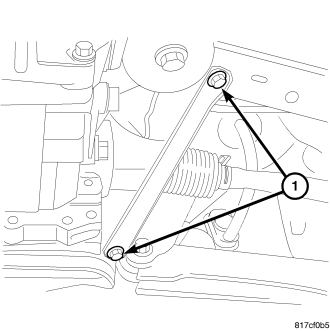

8. Remove the left side stay bracket bolts (1).

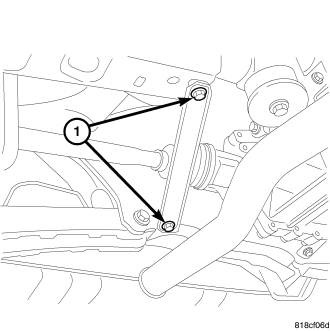

9. Remove the right side stay bracket bolts (1).
10. Remove the exhaust system up to the catalytic converter. (Refer to 11 - EXHAUST SYSTEM/MUFFLER - REMOVAL)
11. Support the rear driveline module with a transmission jack.

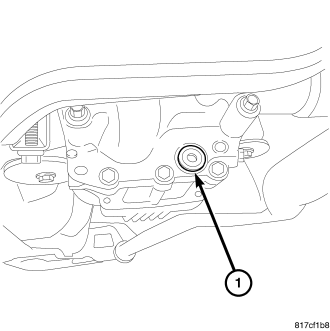

12. Remove the rear bolt (1) at the driveline module.

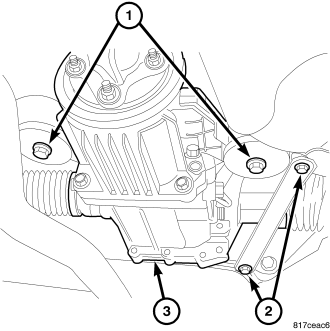

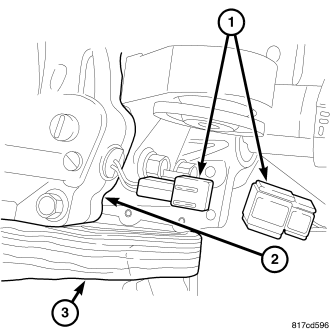

13. Remove the two side bolts (1) at driveline module (3).
14. Lower driveline module enough gain to access to the electrical connector and bracket.

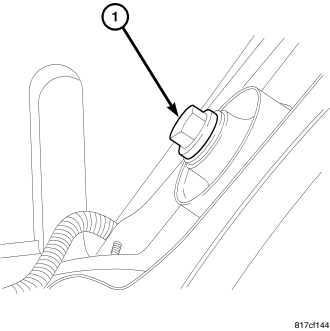

15. Remove the routing bracket bolt.
16. Remove breather hose from ECC.
17. Unplug the electrical connector (1).
18. Lower the driveline module (1).
19. Disengage axle shaft (2).
20. Remove wheel if necessary.
21. Remove nut and washer halfshaft from left rear hub.
22. Remove halfshaft from rear hub. If hard to remove, or sticking, use a punch and hammer to tap out.
INSTALLATION
1. Lift driveline module (1) with a transmission jack while installing halfshaft (2).
2. Install halfshaft washer and nut on left rear hub and tighten to 244 N·m (180 ft.lbs.).
3. Connect the electrical connector (1).
4. Connect breather hose to ECC.
5. Install wire harness bracket and two mounting bolt and tighten to 10 N·m (89 in. lbs.).
6. Lift driveline module into place.
7. Install the two driveline module side mounting bolts (1) and tighten to 102 N·m (75 ft.lbs.).
8. Install the one rear driveline module mounting bolt (1) and tighten to 102 N·m (75 ft. lbs.).
9. Install the right side stay bracket and bolts (1) and tighten to 61 N·m (45 ft. lbs.).
10. Install the left side stay bracket bolts (1) and tighten to 61 N·m (45 ft. lbs.).
11. Install the propeller shaft (Refer to 3 - DIFFERENTIAL & DRIVELINE/PROPELLER SHAFT - INSTALLATION) .
12. Fill the rear axle with fluid.
13. Roll sway bar (2) into place if equipped.
14. Install left side sway bar nut (1) and tighten to 61 N·m (45 ft. lbs.) if equipped.
15. Install right side sway bar nut (1) and tighten to 61 N·m (45 ft. lbs.) if equipped.
16. Install the exhaust (Refer to 11 - EXHAUST SYSTEM/MUFFLER - INSTALLATION) .
17. Install the wheels (Refer to 22 - TIRES/WHEELS - DIAGNOSIS AND TESTING) .
