PANEL - C-PILLAR TRIM
REMOVAL

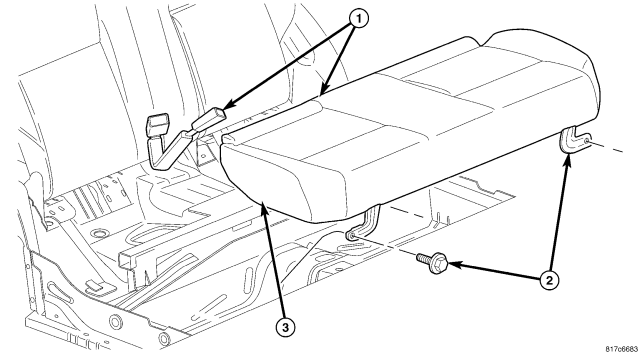

1. Remove the bolts (2) and remove the rear seat cushion (3), (Refer to 23 - BODY/SEATS/SEAT CUSHION - REAR - REMOVAL).

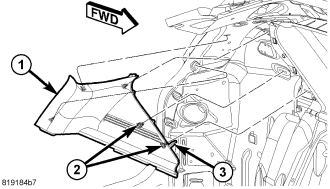

2. Remove the D-pillar trim (1), (Refer to 23 - BODY/INTERIOR/PANEL - D-PILLAR TRIM - REMOVAL).

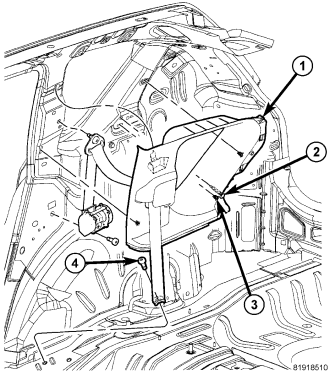

3. Remove the seat belt anchor bolt (4).
4. Using a trim stick C-4755 or equivalent, separate the retaining clips (3) and remove the C-pillar trim (1).
5. Pull the seat belt through the hole in the trim.
INSTALLATION
1. Pull the seat belt through the hole in the trim.
2. Position the trim tabs (2) into the body and seat the trim retaining clips (3) fully.
3. Install and tighten the screw (4) that secures the lower anchor to the rear floor panel. Tighten the screw to 40 N·m (30 ft. lbs.).
4. Install the D-pillar trim (1), (Refer to 23 - BODY/INTERIOR/PANEL - D-PILLAR TRIM - INSTALLATION).
5. Install the rear seat cushion (3), (Refer to 23 - BODY/SEATS/SEAT CUSHION - REAR - INSTALLATION).
