SEALS-OUTPUT FLANGE
REMOVAL
1. Raise the vehicle on a hoist.
2. Remove right side halfshaft (Refer to 3 - DIFFERENTIAL & DRIVELINE/HALF SHAFT - REMOVAL).

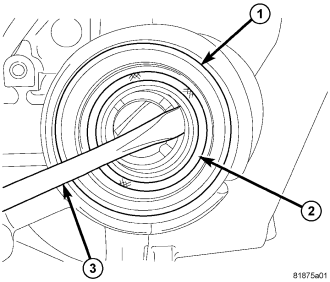

3. Remove the pinion side seal (2).
4. Remove left side halfshaft (Refer to 3 - DIFFERENTIAL & DRIVELINE/HALF SHAFT - REMOVAL).

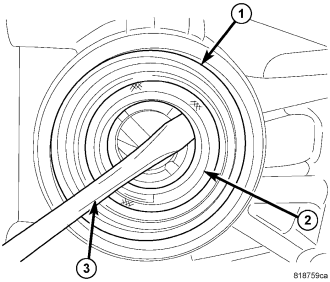

5. Remove ring gear side seal.
INSTALLATION

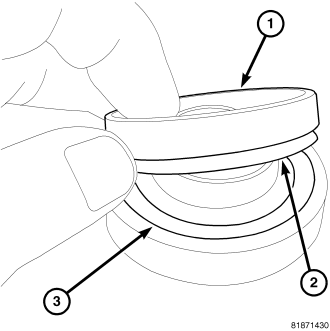

1. Place the seal on the installer.

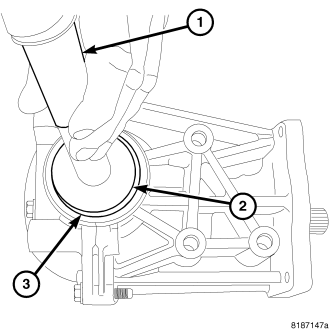

2. Install the pinion side seal using Installer 9893 and Handle C-4171.
3. Install right side halfshaft (Refer to 3 - DIFFERENTIAL & DRIVELINE/HALF SHAFT - INSTALLATION)..
4. Place the seal on the installer.

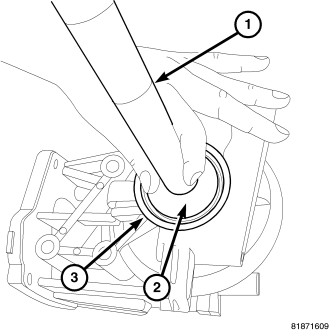

5. Install the ring gear side seal using Installer 9893 and Handle C-4171.
6. Install left side halfshaft (Refer to 3 - DIFFERENTIAL & DRIVELINE/HALF SHAFT - INSTALLATION).
7. Fill RDA as needed (Refer to 3 - DIFFERENTIAL & DRIVELINE/REAR DRIVELINE MODULE - STANDARD PROCEDURE).
8. Lower vehicle and road test.
