FUSE BLOCK
DESCRIPTION
An electrical Fuse Block is located in the left front bumper fascia. It serves to simplify and centralize numerous electrical components, as well as to distribute electrical current to many of the accessory systems in the vehicle.
There are two clips that retain the fuse block cover to the fuse block. The cover can be removed to service the fuses and relays by depressing the clips and lifting off the cover. If fuse block wire terminal or insulator service is required the complete fuse block assembly must be removed, (Refer to 8 - ELECTRICAL/POWER DISTRIBUTION/FUSE BLOCK - REMOVAL).
OPERATION
The fuse block houses relays and blade-type fuses. The fuses, relays and fuse block unit are available for service replacement. Refer to Wiring Diagrams for complete circuit diagrams.
REMOVAL
WARNING: ON VEHICLES EQUIPPED WITH AIRBAGS, REFER TO RESTRAINT SYSTEMS BEFORE ATTEMPTING ANY STEERING COLUMN OR INSTRUMENT PANEL COMPONENT DIAGNOSIS OR SERVICE. FAILURE TO TAKE THE PROPER PRECAUTIONS COULD RESULT IN ACCIDENTAL AIRBAG DEPLOYMENT AND POSSIBLE PERSONAL INJURY.
1. Disconnect and isolate the battery negative cable.
2. Remove the front bumper fascia. (Refer to 13 - FRAME & BUMPERS/BUMPERS/FRONT FASCIA - INSTALLATION).

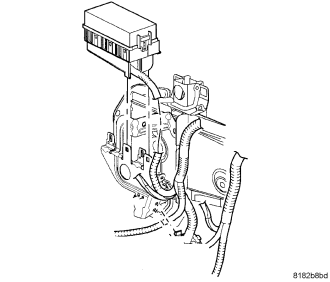

3. Depress mounting clips and lift the fuse block off the bracket.
4. Remove the wire harness and fuse block.
INSTALLATION
WARNING: ON VEHICLES EQUIPPED WITH AIRBAGS, REFER TO RESTRAINT SYSTEMS BEFORE ATTEMPTING ANY STEERING COLUMN OR INSTRUMENT PANEL COMPONENT DIAGNOSIS OR SERVICE. FAILURE TO TAKE THE PROPER PRECAUTIONS COULD RESULT IN ACCIDENTAL AIRBAG DEPLOYMENT AND POSSIBLE PERSONAL INJURY.
1. Install the new wire harness and fuse block into the vehicle.
2. Position the fuse block onto the mounting bracket and push down until the mounting clips are fully seated.
3. Install the front bumper fascia. (Refer to 13 - FRAME & BUMPERS/BUMPERS/FRONT FASCIA - REMOVAL).
4. Connect the battery negative cable.
