INSTALLATION
GAS ENGINE

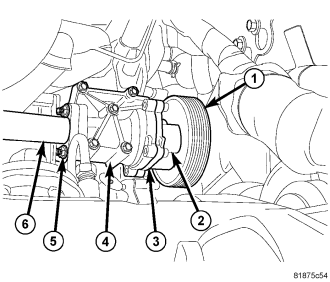

1. Position water pump assembly (3) into water pump housing (4).
2. Install mounting bolts (2). Tighten bolts to 24 N·m (212 in. lbs.).
3. Install water pump pulley (1). Tighten bolts to 9 N·m (791 in lbs.).
4. Install drive belt splash shield.
5. Lower vehicle.
6. Install accessory drive belt (Refer to 7 - COOLING/ACCESSORY DRIVE/DRIVE BELT - INSTALLATION).
7. Connect battery negative terminal.
8. Fill cooling system (Refer to 7 - COOLING - STANDARD PROCEDURE - FILLING COOLING SYSTEM).
DIESEL

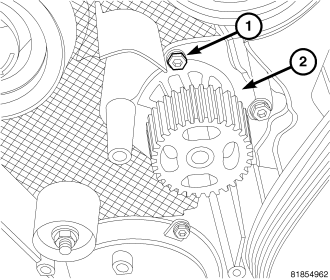

1. Clean the O-ring mating surfaces on water pump (2) and front of timing chain cover.
2. Install O-ring onto water pump (2).
3. Apply a small amount of petroleum jelly to lubricate O-ring.
4. Install water pump and mounting bolts. Tighten bolts (1) to mounting bolts to 24 N·m (18 ft. lbs.).
5. Install timing belt (Refer to 9 - ENGINE/VALVE TIMING/TIMING BELT/CHAIN AND SPROCKETS - ADJUSTMENTS)
