REMOVAL
FRONT
WARNING: To avoid serious or fatal injury, during and following any seat belt or child restraint anchor service, carefully inspect all seat belts, buckles, mounting hardware, retractors, tether straps, and anchors for proper installation, operation, or damage. Replace any belt that is cut, frayed, or torn. Straighten any belt that is twisted. Tighten any loose fasteners. Replace any belt that has a damaged or ineffective buckle or retractor. Replace any belt that has a bent or damaged latch plate or anchor plate. Replace any child restraint anchor or the unit to which the anchor is integral that has been bent or damaged. Never attempt to repair a seat belt or child restraint component. Always replace damaged or ineffective seat belt and child restraint components with the correct, new and unused replacement parts listed in the DaimlerChrysler Mopar® Parts Catalog.

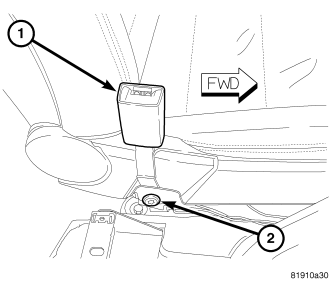

1. Move the front seat to its most rearward position for easiest access to the front seat belt buckle (1) lower anchor.
2. Disconnect and isolate the battery negative cable. Wait two minutes for the system capacitor to discharge before further service.
3. Remove the console from the floor panel transmission tunnel. (Refer to 23 - BODY/INTERIOR/FLOOR CONSOLE - REMOVAL).
4. Remove the screw (2) that secures the front seat belt buckle lower anchor to the inboard side of the front seat cushion frame.
5. Remove the seat belt buckle from the front seat cushion frame.
SECOND ROW - CENTER AND LEFT
WARNING: To avoid serious or fatal injury, during and following any seat belt or child restraint anchor service, carefully inspect all seat belts, buckles, mounting hardware, retractors, tether straps, and anchors for proper installation, operation, or damage. Replace any belt that is cut, frayed, or torn. Straighten any belt that is twisted. Tighten any loose fasteners. Replace any belt that has a damaged or ineffective buckle or retractor. Replace any belt that has a bent or damaged latch plate or anchor plate. Replace any child restraint anchor or the unit to which the anchor is integral that has been bent or damaged. Never attempt to repair a seat belt or child restraint component. Always replace damaged or ineffective seat belt and child restraint components with the correct, new and unused replacement parts listed in the DaimlerChrysler Mopar® Parts Catalog.

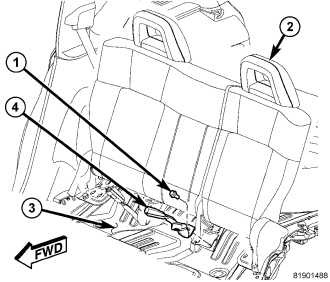

1. Remove the second row seat cushion from the rear floor panel (3). (Refer to 23 - BODY/SEATS/SEAT CUSHION - REAR - REMOVAL).
2. Remove the screw (1) that secures the center and left seat belt buckle unit (4) anchor plate and the left center seat back (2) hinge bracket to the rear floor panel.
3. Remove the buckle unit from the rear floor panel.
SECOND ROW - RIGHT AND CENTER ANCHOR
WARNING: To avoid serious or fatal injury, during and following any seat belt or child restraint anchor service, carefully inspect all seat belts, buckles, mounting hardware, retractors, tether straps, and anchors for proper installation, operation, or damage. Replace any belt that is cut, frayed, or torn. Straighten any belt that is twisted. Tighten any loose fasteners. Replace any belt that has a damaged or ineffective buckle or retractor. Replace any belt that has a bent or damaged latch plate or anchor plate. Replace any child restraint anchor or the unit to which the anchor is integral that has been bent or damaged. Never attempt to repair a seat belt or child restraint component. Always replace damaged or ineffective seat belt and child restraint components with the correct, new and unused replacement parts listed in the DaimlerChrysler Mopar® Parts Catalog.
1. Remove the second row seat cushion from the rear floor panel (1). (Refer to 23 - BODY/SEATS/SEAT CUSHION - REAR - REMOVAL).
2. Remove the screw (3) that secures the right and center anchor seat belt buckle unit (2) anchor plate and the child anchor bracket (5) to the rear floor panel.
3. Remove the buckle unit from the rear floor panel.
