SEAT BACK - REAR
DESCRIPTION

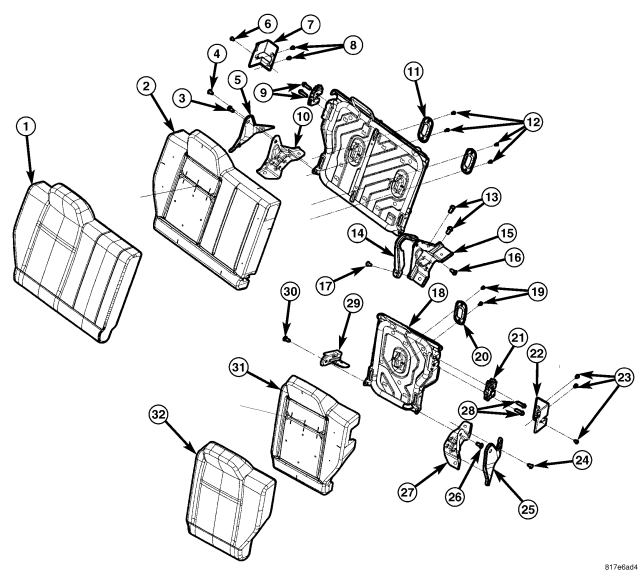

| REAR SEAT BACK - W/O RECLINER OPTION |
| REAR SEAT BACK - W/O RECLINER OPTION |
||
| 1 - 60% SEAT BACK COVER |
17 - PUSH PIN FASTENER |
|
| 2 - 60% SEAT BACK FOAM CUSHION |
18 - SEAT BACK FRAME ASSEMBLY 40% |
|
| 3 - PIVOT BOLT 32 N·m (24 ft. lbs.) |
19 - CHILD TETHER BEZEL SCREWS |
|
| 4 - PIN |
20 - CHILD TETHER BEZEL |
|
| 5 - FLOOR BRACKET |
21 - LATCHES (2) |
|
| 6 - LATCH BEZEL SCREW |
22 - LATCH BEZEL |
|
| 7 - LATCH BEZEL |
23 - LATCH BEZEL SCREWS |
|
| 8 - LATCH BEZEL SCREWS |
24 - PUSH PIN FASTENER |
|
| 9 - LATCH BOLTS 28 N·m (21 ft. lbs.) |
25 - SHIELD |
|
| 10 - FLOOR BRACKET |
26 - PIVOT BOLT 32 N·m (24 ft. lbs.) |
|
| 11 - CHILD TETHER BEZELS |
27 - FLOOR BRACKET |
|
| 12 - CHILD TETHER BEZEL SCREWS |
28 - LATCH BOLTS 28 N·m (21 ft. lbs.) |
|
| 13 - BOLTS 7 N·m (5 ft. lbs.) |
29 - FLOOR BRACKET |
|
| 14 - CENTER SHIELD |
30 - PIVOT BOLT 32 N·m (24 ft. lbs.) |
|
| 15 - FLOOR BRACKET |
31 - SEAT BACK FOAM CUSHION 40% |
|
| 16 - PIVOT BOLT 45 N·m (33 ft. lbs.) |
32 - SEAT BACK CUSHION COVER 40% |
|

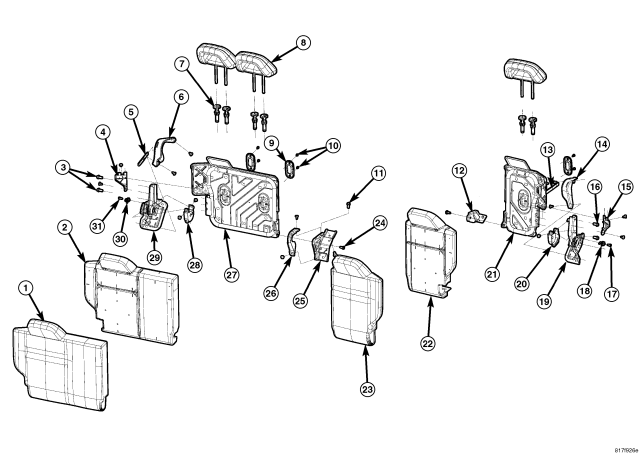

| REAR SEAT BACK - RECLINER |
| REAR SEAT BACK - RECLINER |
||
| 1 - 60% SEAT BACK COVER |
17 - PUSH PIN |
|
| 2 - 60% SEAT BACK FOAM CUSHION |
18 - PULLEY ASSEMBLY BOLT 7 N·m (5 ft. lbs.) |
|
| 3 - RECLINER BOLT 45 N·m (33 ft. lbs.) |
19 - RECLINER ASSEMBLY |
|
| 4 - UPPER INNER SHIELD |
20 - LOWER INNER SHIELD |
|
| 5 - PULL STRAP |
21 - SEAT BACK FRAME ASSEMBLY 40% |
|
| 6 - RECLINER SHIELD |
22 - SEAT BACK FOAM CUSHION 40% |
|
| 7 - HEADREST SLEEVES (REST OF WORLD) |
23 - SEAT BACK CUSHION COVER 40% |
|
| 8 - HEADRESTS (3) (REST OF WORLD) |
24 - PIVOT BOLT 32 N·m (24 ft. lbs.) |
|
| 9 - CHILD TETHER BEZELS |
25 - FLOOR BRACKET |
|
| 10 - CHILD TETHER BEZEL SCREWS |
26 - CENTER SHIELD |
|
| 11 - SCREWS (2) 7 N·m (5 ft. lbs.) |
27 - SEAT BACK FRAME ASSEMBLY 60% |
|
| 12 - FLOOR BRACKET |
28 - LOWER INNER SHIELD |
|
| 13 - PULL STRAP |
29 - RECLINER ASSEMBLY |
|
| 14 - RECLINER SHIELD |
30 - PULLEY ASSEMBLY BOLT 7 N·m (5 ft. lbs.) |
|
| 15 - UPPER INNER SHIELD |
31- PUSH PIN |
|
| 16 - RECLINER BOLT (2) 45 N·m (33 ft. lbs.) |
||
REMOVAL
1. Remove the seat cushion (Refer to 23 - BODY/SEATS/SEAT CUSHION - REAR - REMOVAL)
2. Remove the belt buckle bolt (2) and the buckle (1).
3. Remove the floor bracket or recliner bolts (4).
4. Fold the seats forward.
5. Remove the nut (5) and bolts (6) and remove the 40% seat back (4).
6. Remove the nuts from the studs (2) and remove the 60% seat back.
DISASSEMBLY
1. Remove the screws (1) and remove the latch bezel (2).

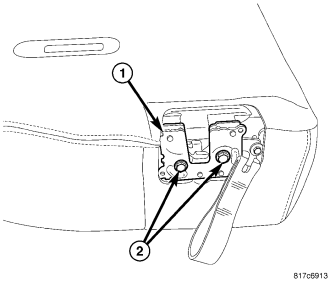

2. Remove the bolts (2) and remove the latch (1).
3. Remove the screws (1) and remove the tether trim bezels (2).
4. Remove the headrest.

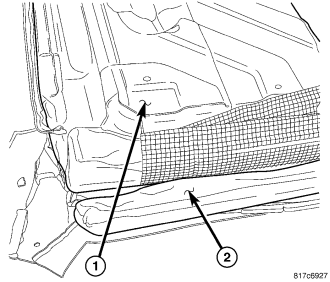

5. Separate the zip strips (1 and 2).
6. Remove the push pin fasteners (3).

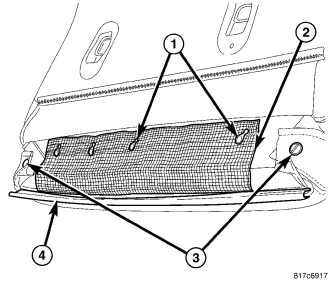

7. Separate the inner cover (2) from the hooks (1).

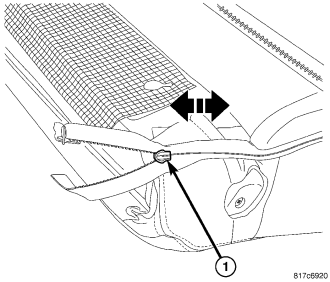

8. Unzip the cover (1).
9. Remove the foam insert (2) from the seat back assembly (1).

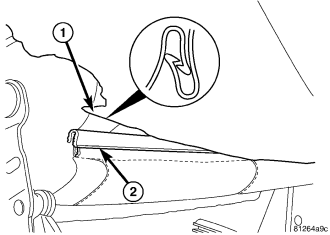

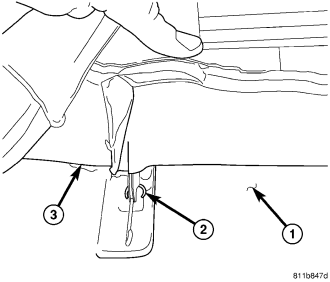

10. Separate the seat cover (3) from the foam cushion (1) and cut off all hog rings (2) attaching the cover to the foam.

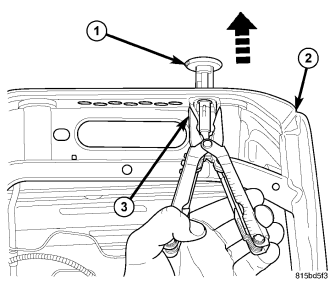

11. Squeeze the locking tab (3) and remove the headrest sleeves (1).
12. Remove the seat back cover and cushion.
ASSEMBLY
1. Position the seat back cushion on the frame and position the cover over the cushion.
2. Attach the seat cover (3) to the seat back cushion (1) and install new hog rings (2) as required.
3. Position the foam insert (2) back at the base of the seat back assembly (1).
4. Zip the cover back over the frame.
5. Install the push pin fasteners (3).
6. Position the inner cover (2) over the frame hooks (1).
7. Fasten the upper (1) and lower (2) zip strips at the bottom of the seat back.
8. Install the child tether bezels (2) and install the screws (1).
9. Install the latch (1) and install the bolts (2).
10. Tighten the bolts to 28 N·m (21 ft. lbs.).
11. Install the latch bezel (2) and install the screws (1).
12. Install the headrest sleeves (2), if equipped.
13. Press the headrest sleeve release buttons and install the headrest, if equipped.
14. Install the seat back (Refer to 23 - BODY/SEATS/SEAT BACK - INSTALLATION).
INSTALLATION

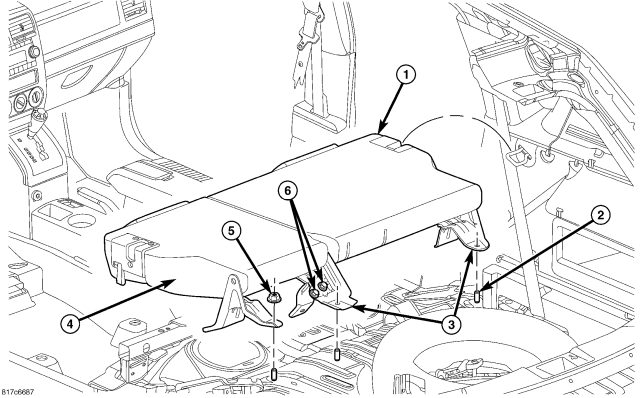

1. Install the 60% seat section (1) over the studs (2) and install the nuts (3).
2. Install the 40% seat section (4) over the stud and seat bracket and install the seat bracket bolts (6).
3. Tighten the seat bracket bolts (6) to 46 N·m (34 ft. lbs.).
4. Install the nut (5).
5. Tighten the nuts (5 and 3) to 80 N·m (60 ft. lbs.).
6. Position the seat backs (3) up and latch.
7. Install the belt buckles (1) and install the bolt (2).
8. Tighten the buckle bolt to 66 N·m (49 ft. lbs.)
9. Install the bolts (4) and tighten to 80 N·m (59 ft. lbs.)
10. Install the seat cushion (Refer to 23 - BODY/SEATS/SEAT CUSHION - FRONT - INSTALLATION).
