SEAL-INPUT SHAFT
REMOVAL
1. Remove the transaxle (Refer to 21 - TRANSMISSION/TRANSAXLE/MANUAL - REMOVAL).
2. Remove seal.
INSTALLATION

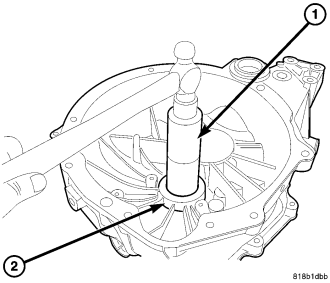

1. Install input shaft seal (2) using installer 8864 (1).
2. Install the transaxle (Refer to 21 - TRANSMISSION/TRANSAXLE/MANUAL - INSTALLATION).
