REMOVAL
FRONT
1. Disconnect the negative battery cable.
2. Remove the drivers seat (Refer to 23 - BODY/SEATS/SEAT - REMOVAL).

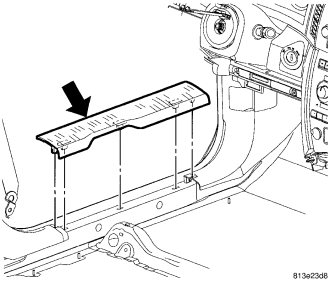

3. Remove the left sill plate.
4. Remove the left B-pillar trim panel (Refer to 23 - BODY/INTERIOR/B-PILLAR UPPER TRIM - REMOVAL).

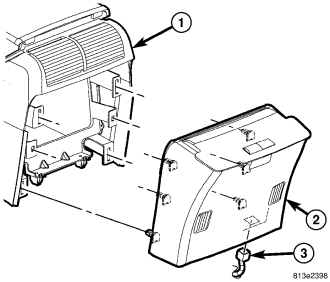

5. Remove the console rear cover (2) or the DVD player (if equipped).

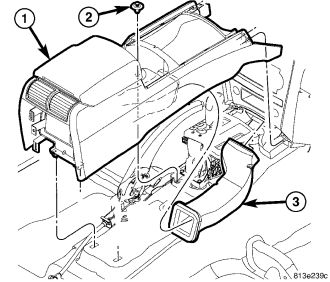

6. Remove center console (1) , (Refer to 23 - BODY/INTERIOR/FLOOR CONSOLE - REMOVAL).
7. Remove the rear seat bottom (Refer to 23 - BODY/SEATS/SEAT CUSHION - REMOVAL).

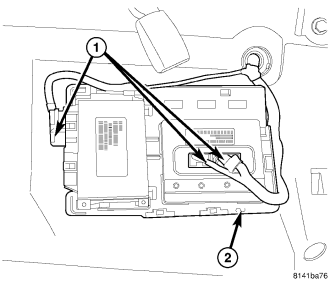

8. Disconnect the modules electrical connectors (1).
9. Remove the module mounting nuts from the bracket (2).
10. Remove the rear sill plates.
11. Pull and roll the rear carpet upwards to gain access to the front park brake cable.
12. Lock out the front park brake cable.

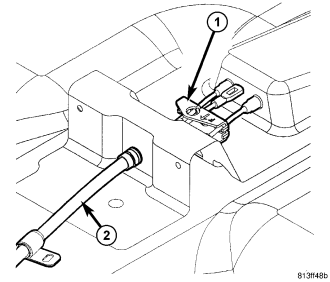

13. Remove the front cable (2) at the equalizer (1).

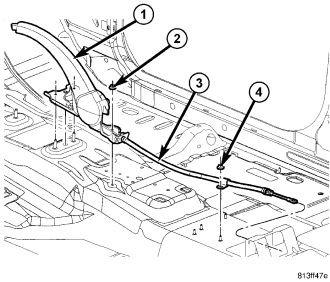

14. Remove the 2 front cable routing clamps and the 3 nuts (2&4).
15. Remove the front cable at the rear floor bracket.
16. Remove the front cable (3) at the hand lever (1).
17. Remove the front cable at the hand lever mounting bracket.
REAR
1. Remove the rear seat bottom (Refer to 23 - BODY/SEATS/SEAT CUSHION - REMOVAL).
2. Disconnect the (FDCM) final drive control module electrical connectors (1).
3. Remove the (FDCM) module bracket (2) mounting nuts.
4. Remove the rear sill plates.
5. Roll the carpet back to access the rear park brake cables.

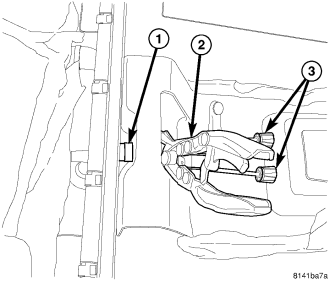

6. Lock-out the park brake cable (1).
7. Disconnect the brake cables from the equalizer (1).
8. Remove the park brake cables (2) thru the floor (1).
9. Raise and support the vehicle.
10. Remove the tire and wheel assembly.

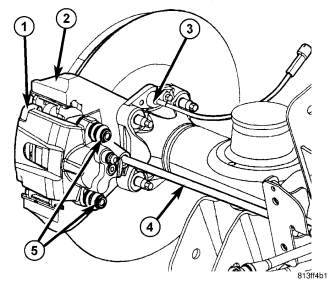

11. Remove the rear caliper (1) (Refer to 5 - BRAKES/HYDRAULIC/MECHANICAL/DISC BRAKE CALIPERS - REMOVAL).
12. Remove the disc brake rotor.
13. Remove the axle flange bolts (1).
14. Remove the axle (1).

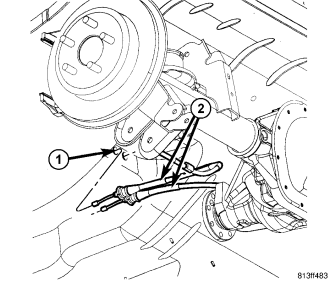

15. Disconnect the park brake cable at the brake actuator lever (2).

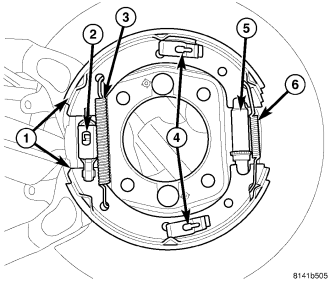

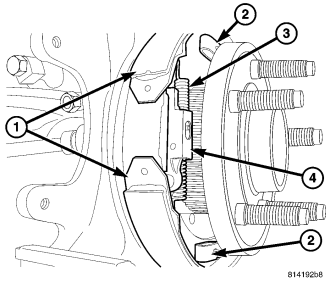

16. Disconnect the rear park brake shoes (1) (Refer to 5 - BRAKES/PARKING BRAKE/SHOES - REMOVAL).
17. Remove the park brake cable (2) thru the support plate.
18. Remove the stabilizer bar bushing clamp bolts.
19. Remove the 2 push pins for the park brake cable to the axle.
20. Remove the cable (2) from the vehicle.
