REMOVAL
FRONT
WARNING: To avoid personal injury or death, during and following any seat belt or child restraint anchor service, carefully inspect all seat belts, buckles, mounting hardware, retractors, tether straps, and anchors for proper installation, operation, or damage. Replace any belt that is cut, frayed, or torn. Straighten any belt that is twisted. Tighten any loose fasteners. Replace any belt that has a damaged or ineffective buckle or retractor. Replace any belt that has a bent or damaged latch plate or anchor plate. Replace any child restraint anchor or the unit to which the anchor is integral that has been bent or damaged. Never attempt to repair a seat belt or child restraint component. Always replace damaged or ineffective seat belt and child restraint components with the correct, new and unused replacement parts listed in the DaimlerChrysler Mopar® Parts Catalog.

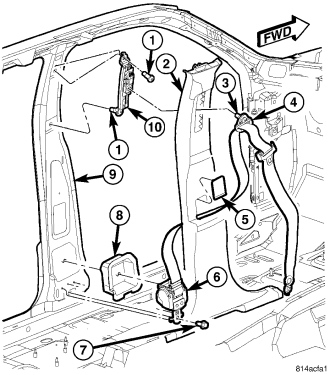

1. Adjust the front seat to its most forward position for easiest access to the front seat belt lower anchor cover (1) and the B-pillar trim.
2. Grasp the upper edge of the lower anchor cover and pull upward to unsnap it from the front seat cushion outboard side shield.
3. Remove the screw (2) that secures the lower anchor to the outboard side of the front seat cushion frame.
4. Firmly grasp the lower end of the turning loop trim cover on the upper B-pillar and pull it straight out to unsnap it from the height adjuster, then lift the bottom of the cover upward and pull outward to disengage the upper tabs from the adjuster.
5. Remove the screw (3) that secures the seat belt turning loop (4) to the height adjuster (10).
6. Remove the seat belt turning loop from the height adjuster.
7. Remove the upper trim from the inside of the B-pillar (9). (Refer to 23 - BODY/INTERIOR/B-PILLAR UPPER TRIM - REMOVAL).
8. Unsnap and remove the cover (5) from above the seat belt opening in the B-pillar trim (2).
9. Remove the trim from the lower B-pillar. (Refer to 23 - BODY/INTERIOR/B-PILLAR LOWER TRIM - REMOVAL).
10. Pull the front seat belt turning loop and lower anchor through the seat belt opening in the lower B-pillar trim.
11. Remove the screw (7) that secures the retractor (6) lower bracket to the base of the inner B-pillar.
12. Remove the front seat belt and retractor from the vehicle as a unit.
REAR CENTER
WARNING: To avoid personal injury or death, during and following any seat belt or child restraint anchor service, carefully inspect all seat belts, buckles, mounting hardware, retractors, tether straps, and anchors for proper installation, operation, or damage. Replace any belt that is cut, frayed, or torn. Straighten any belt that is twisted. Tighten any loose fasteners. Replace any belt that has a damaged or ineffective buckle or retractor. Replace any belt that has a bent or damaged latch plate or anchor plate. Replace any child restraint anchor or the unit to which the anchor is integral that has been bent or damaged. Never attempt to repair a seat belt or child restraint component. Always replace damaged or ineffective seat belt and child restraint components with the correct, new and unused replacement parts listed in the DaimlerChrysler Mopar® Parts Catalog.
1. Remove the left rear seat back panel (4) from the vehicle. (Refer to 23 - BODY/SEATS/REAR SEAT BACK - REMOVAL).
2. Remove the trim from the left rear seat back.
3. Disengage the seat belt lower anchor through the web guide loop integral to the top of the seat back panel.

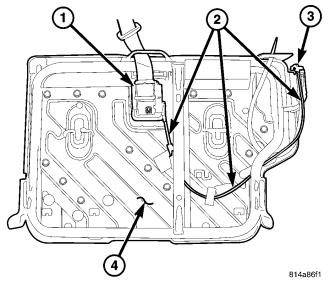

4. Disengage the retractor lock cable (2) end fitting from the seat back latch mechanism (3) on the upper outboard corner of the seat back panel.
5. Disengage the lock cable from the back panel between the latch and the retractor (1).

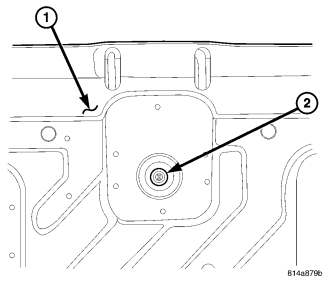

6. Remove the screw (2) from the back of the seat back panel (1) that secures the retractor.
7. Remove the rear center seat belt and retractor unit from the front of the left seat back panel.
REAR OUTBOARD
WARNING: To avoid personal injury or death, during and following any seat belt or child restraint anchor service, carefully inspect all seat belts, buckles, mounting hardware, retractors, tether straps, and anchors for proper installation, operation, or damage. Replace any belt that is cut, frayed, or torn. Straighten any belt that is twisted. Tighten any loose fasteners. Replace any belt that has a damaged or ineffective buckle or retractor. Replace any belt that has a bent or damaged latch plate or anchor plate. Replace any child restraint anchor or the unit to which the anchor is integral that has been bent or damaged. Never attempt to repair a seat belt or child restraint component. Always replace damaged or ineffective seat belt and child restraint components with the correct, new and unused replacement parts listed in the DaimlerChrysler Mopar® Parts Catalog.
1. Remove the rear seat cushion from the vehicle. (Refer to 23 - BODY/SEATS/REAR SEAT CUSHION - REMOVAL).
2. Loosen the screw (3) that secures the rear outboard seat belt lower anchor and the rear seat back bracket to the rear floor panel.
3. Disengage the lower anchor from the loosened screw.
4. Remove the upper trim from the inside of the C-pillar. (Refer to 23 - BODY/INTERIOR/C-PILLAR TRIM - REMOVAL).
5. Disengage the seat belt lower anchor from the seat belt opening in the upper C-pillar trim.
6. Remove the trim (5) from the quarter inner panel. (Refer to 23 - BODY/INTERIOR/QUARTER TRIM PANEL - REMOVAL).
7. Remove the screw (2) that secures the seat belt turning loop to the upper C-pillar.
8. Remove the seat belt turning loop from the upper C-pillar.
9. Remove the screw (4) that secures the retractor (1) to the lower C-pillar.
10. Disengage the retractor locator tab from the slot in the lower C-pillar.
11. Remove the rear outboard seat belt and retractor from the lower C-pillar as a unit.
