SENSOR-WHEEL SPEED-FRONT
REMOVAL
1. Disconnect the front wheel speed sensor wire connector that is located on the inboard side of the respective wheel house.
2. Raise and support the vehicle.
3. Remove the tire and wheel assembly.
4. Remove the caliper adapter. (Refer to 5 - BRAKES/HYDRAULIC/MECHANICAL/DISC BRAKE CALIPER ADAPTER - REMOVAL).
CAUTION: Never allow the disc brake caliper to hang from the brake hose. Damage to the brake hose with result. Provide a suitable support to hang the caliper securely.
5. Remove the disc brake rotor (3). (Refer to 5 - BRAKES/HYDRAULIC/MECHANICAL/ROTORS - REMOVAL).
6. Remove the wheel speed sensor mounting bolt to the hub .
7. Remove the wheel speed sensor wire from the hub/bearing .
8. Remove the wheel speed sensor wire hold down (4) from the knuckle .

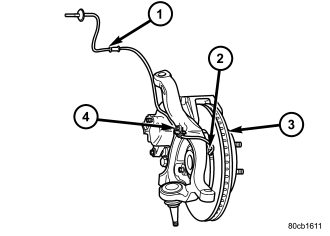

9. Remove the wheel speed sensor wire (1) thru the wheel well.
10. Remove the wheel speed sensor (2) from the vehicle.
INSTALLATION
1. Install the wheel speed sensor (2) to the vehicle.
2. Install the wheel speed sensor wire (1) thru the wheel well.
3. Install the wheel speed sensor wire (1) to the hub/bearing.
4. Install the wheel speed sensor wire hold down (4) to the knuckle.
5. Install the wheel speed sensor mounting bolt to the hub. Tighten the mounting bolt to 13.5 N·m (120 in. lbs.) .
6. Install the disc brake rotor (3) (Refer to 5 - BRAKES/HYDRAULIC/MECHANICAL/ROTORS - INSTALLATION) .
7. Install the disc brake caliper adapter. (Refer to 5 - BRAKES/HYDRAULIC/MECHANICAL/DISC BRAKE CALIPER ADAPTER - INSTALLATION).
8. Install the tire and wheel assembly (Refer to 22 - TIRES/WHEELS/WHEELS - STANDARD PROCEDURE).
9. Reconnect the front wheel speed sensor wire connector to the inboard side of the wheel house being worked on.
