GLASS RUN CHANNEL
REMOVAL

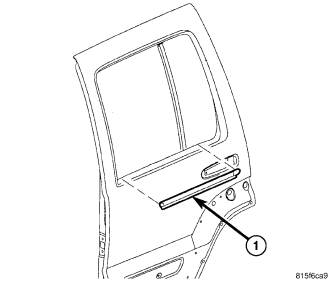

1. Remove the outer belt molding (1). (Refer to 23 - BODY/WEATHERSTRIP/SEALS/REAR DOOR OUTER BELT MOLDING - REMOVAL)
2. Remove the door glass (1). (Refer to 23 - BODY/DOORS - REAR/DOOR GLASS - REMOVAL)

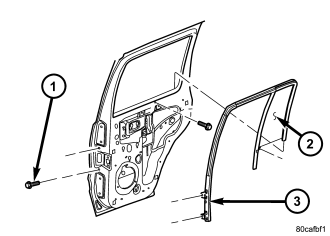

3. Remove the front (1) and rear bolts.
4. Peal the weatherstrip and quarter glass out of the door frame and remove the run channel through the window opening as an assembly.
INSTALLATION
1. Install the run channel and quarter glass assembly through the window opening and into the door frame.
2. Install the front (1), rear bolts and tighten to 9 N·m (80 in. lbs.).
3. Install the door glass (1). (Refer to 23 - BODY/DOORS - REAR/DOOR GLASS - INSTALLATION)
4. Install the outer belt molding (1). (Refer to 23 - BODY/WEATHERSTRIP/SEALS/REAR DOOR OUTER BELT MOLDING - INSTALLATION)
