HINGE
REMOVAL
1. Remove the upper B-pillar trim. (Refer to 23 - BODY/INTERIOR/B-PILLAR UPPER TRIM - REMOVAL)
2. Remove the door. (Refer to 23 - BODY/DOORS - REAR/DOOR - REMOVAL)

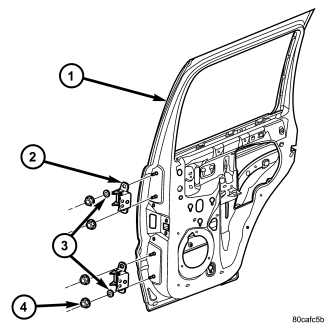

3. Remove the two door hinge bolts from the inside of the B-pillar.
4. Remove the exterior bolts attaching the door hinges to the B-pillar.
INSTALLATION
1. Install the hinges.
2. Install the exterior bolts and tighten to 28 N·m (21 ft. lbs.).
3. Install the two inner hinge bolts and tighten to 28 N·m (21 ft. lbs.).
4. Install the door (1). (Refer to 23 - BODY/DOORS - REAR/DOOR - INSTALLATION)
5. Adjust the door as necessary. (Refer to 23 - BODY/BODY STRUCTURE/GAP AND FLUSH - SPECIFICATIONS)
6. Install the upper B-pillar trim. (Refer to 23 - BODY/INTERIOR/B-PILLAR UPPER TRIM - INSTALLATION)
