REMOVAL
BULB - A/C-HEAT CONTROL
WARNING: To avoid personal injury or death, on vehicles equipped with airbags, disable the supplemental restraint system before attempting any steering wheel, steering column, airbag, occupant classification system, seat belt tensioner, impact sensor, or instrument panel component diagnosis or service. Disconnect and isolate the battery negative (ground) cable, then wait two minutes for the system capacitor to discharge before performing further diagnosis or service. This is the only sure way to disable the supplemental restraint system. Failure to take the proper precautions could result in accidental airbag deployment.
1. Disconnect and isolate the battery negative cable.

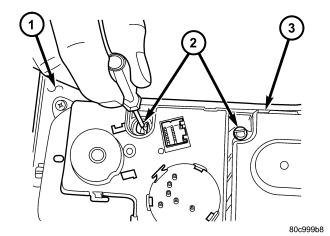

2. Remove the center bezel (1) from the instrument panel. (Refer to 23 - BODY/INSTRUMENT PANEL/INSTRUMENT PANEL CENTER BEZEL - REMOVAL).
3. Use a small thin-bladed screwdriver to rotate the bulb holder (2) counterclockwise about 30 degrees to unlock it from the keyed opening on the A/C-heater control (3) circuit board.
4. Pull the bulb holder and bulb straight out of the circuit board.
BULB - CMTC CONTROL
WARNING: To avoid personal injury or death, on vehicles equipped with airbags, disable the supplemental restraint system before attempting any steering wheel, steering column, airbag, occupant classification system, seat belt tensioner, impact sensor, or instrument panel component diagnosis or service. Disconnect and isolate the battery negative (ground) cable, then wait two minutes for the system capacitor to discharge before performing further diagnosis or service. This is the only sure way to disable the supplemental restraint system. Failure to take the proper precautions could result in accidental airbag deployment.
NOTE: The Compass Mini-Trip Computer (CMTC) in the overhead console includes either two or three incandescent illumination bulb and bulb holder units. Three bulbs are used only on vehicles that also feature the optional Universal Garage Door Opener (UGDO).
1. Disconnect and isolate the battery negative cable.

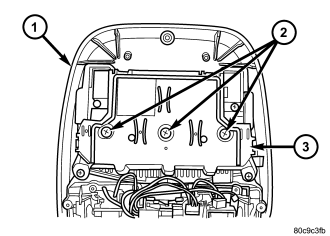

2. Remove the overhead console (1) from the headliner. (Refer to 8 - ELECTRICAL/OVERHEAD CONSOLE - REMOVAL).
3. Use a small thin-bladed screwdriver to rotate the bulb holder (2) counterclockwise about 30 degrees to unlock it from the keyed opening in the Compass Mini-Trip Computer (CMTC) unit (3) circuit board.
4. Pull the bulb holder and bulb straight out of the circuit board.
BULB - TRANSMISSION RANGE INDICATOR
WARNING: To avoid personal injury or death, on vehicles equipped with airbags, disable the supplemental restraint system before attempting any steering wheel, steering column, airbag, occupant classification system, seat belt tensioner, impact sensor, or instrument panel component diagnosis or service. Disconnect and isolate the battery negative (ground) cable, then wait two minutes for the system capacitor to discharge before performing further diagnosis or service. This is the only sure way to disable the supplemental restraint system. Failure to take the proper precautions could result in accidental airbag deployment.
1. Disconnect and isolate the battery negative cable.
2. Remove the center console from the floor panel transmission tunnel. (Refer to 23 - BODY/INTERIOR/FLOOR CONSOLE - REMOVAL).

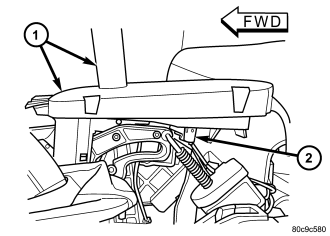

3. From the left side of the vehicle, reach between the transmission range indicator (1) and the floor panel transmission tunnel to access the illumination lamp socket (2).
4. Rotate the socket counterclockwise about 30 degrees to unlock it from the bottom of the range indicator.
5. Pull the socket and bulb straight out of the keyed opening in the range indicator.
6. Pull the bulb straight out of the socket.
