REMOVAL
FRONT
1. Unlatch and open the hood.
2. Remove both front wiper arms from the wiper pivots. (Refer to 8 - ELECTRICAL/FRONT WIPERS/WASHERS/FRONT WIPER ARM - REMOVAL).
3. Remove the cowl plenum cover/grille panel from over the cowl plenum. (Refer to 23 - BODY/EXTERIOR/COWL GRILLE - REMOVAL).

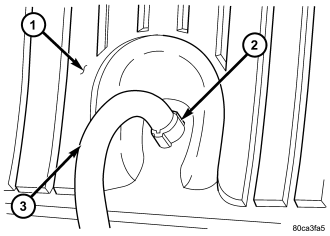

4. From the underside of the cowl plenum cover/grille panel (1), disconnect the washer nozzle hose (3) from the barbed nipple of the front washer nozzle (2).
5. From the underside of the cowl plenum cover/grille panel, release the integral latch features of the front washer nozzle and push the nozzle out through the mounting hole toward the top side of the cowl plenum cover/grille panel.
6. Remove the front washer nozzle from the top of the cowl plenum cover/grille panel.
REAR
NOTE: The rear washer nozzle latch feature is a one time component, and will be damaged if the nozzle is removed from its mounting hole for service. If removed from its mounting hole for any reason, the rear washer nozzle must be replaced with a new unit.

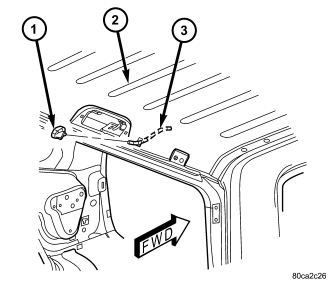

1. Using a trim stick or another suitable wide flat-bladed tool, gently pry the bottom of the rear washer nozzle (1) away from the roof panel (2) until the latch feature at the bottom of the nozzle that secures it in the mounting hole of the roof panel unsnaps.
2. Pull the rear washer nozzle out from the roof panel far enough to access the headliner washer hose (3).
3. Disconnect the washer hose from the barbed nipple on the back of the rear washer nozzle.
4. Discard the rear washer nozzle.
