CROSSMEMBER - TRANSMISSION
REMOVAL
1. Remove the transmission skid plate (1), (Refer to 13 - FRAME & BUMPERS/FRAME/TRANSMISSION SKID PLATE - REMOVAL).
2. Remove the transfercase skid plate (4), (Refer to 13 - FRAME & BUMPERS/FRAME/TRANSFER CASE SKID PLATE - INSTALLATION).

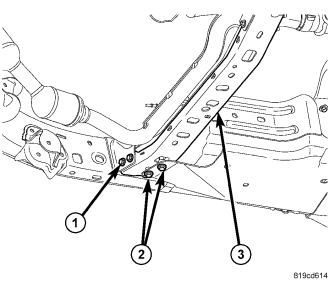

3. Remove the left side bolts (1).
4. Remove the fuel tank skid plate bolts (2).
5. Remove the right side bolts (1) and remove the crossmember (3).
INSTALLATION

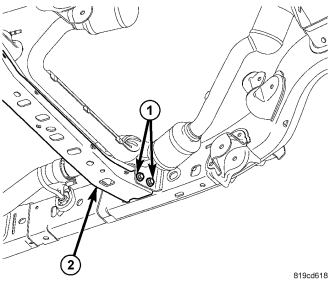

1. Install the crossmember (2) and install the bolts (1).
2. Install the right side bolts (1) and tighten all four crossmember bolts to 122 N·m (90 ft. lbs.).
3. Install the fuel tank skid plate bolts (2) and tighten to 99 N·m (73 ft. lbs.).
4. Install the transmission skid plate (1), (Refer to 13 - FRAME & BUMPERS/FRAME/TRANSMISSION SKID PLATE - INSTALLATION).
5. Install the transfer case skid plate (4), (Refer to 13 - FRAME & BUMPERS/FRAME/TRANSFER CASE SKID PLATE - INSTALLATION).
