LOAD FLOOR
REMOVAL

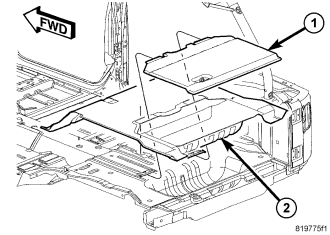

1. Open the load floor cover (1) and pull rearward and remove from the floor slots.
2. Remove the rear seats, (Refer to 23 - BODY/SEATS/SEAT - REAR - REMOVAL)
3. Remove the rear speaker if necessary, (Refer to 8 - ELECTRICAL/AUDIO/SPEAKER - REMOVAL).
4. Remove the load floor carpet (2).
INSTALLATION
1. Install the load floor carpet (2).
2. Install the rear speaker, (Refer to 8 - ELECTRICAL/AUDIO/SPEAKER - INSTALLATION).
3. Install the rear seat, (Refer to 23 - BODY/SEATS/SEAT - REAR - INSTALLATION).
4. Position the cover (1) tabs into the floor slots fully and close the cover.
