INSTALLATION
INSTALLATION - OIL PUMP PICKUP TUBE
1. Lubricate o-ring on oil pump pickup tube with engine oil.
2. Install pickup tube in engine block and install retaining bolt. Torque bolt to 32.4N·m. (24 ft.lbs.)..
3. Install the upper oil pan. (Refer to 9 - ENGINE/LUBRICATION/OIL PAN - INSTALLATION)
4. Install the lower oil pan. (Refer to 9 - ENGINE/LUBRICATION/OIL PAN - INSTALLATION)
5. Refill engine oil to proper level.
6. Connect negative battery cable (Refer to 8 - ELECTRICAL/BATTERY SYSTEM/CABLES - INSTALLATION).
INSTALLATION - OIL PUMP
1. Make sure that the gasket surfaces are free of oil and debris.
2. Lubricate oil pump rotor with engine oil.

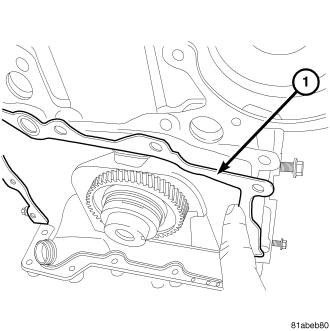

3. Install the oil pump gasket.
4. Install front cover assembly (Refer to 9 - ENGINE/ENGINE BLOCK/ENGINE COVER - INSTALLATION).
