REMOVAL
REMOVAL - OIL PUMP PICKUP TUBE
1. Drain the oil.
2. Disconnect negative battery cable. (Refer to 8 - ELECTRICAL/BATTERY SYSTEM/CABLES - REMOVAL)
3. Raise vehicle on hoist.

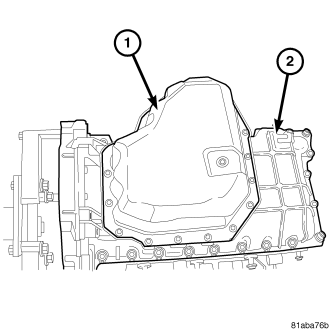

4. Remove the lower oil pan. (Refer to 9 - ENGINE/LUBRICATION/OIL PAN - REMOVAL)

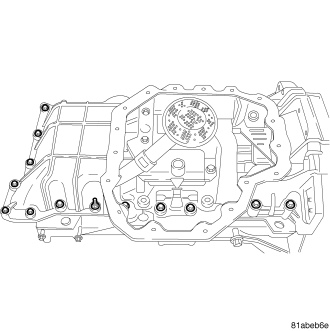

5. Remove the upper oil pan. (Refer to 9 - ENGINE/LUBRICATION/OIL PAN - REMOVAL)
6. Remove oil pump pickup tube retaining bolt and pull pickup tube from engine block. Discard O-rings.
REMOVAL - OIL PUMP
1. Disconnect negative battery cable.
2. Remove cooling fan and fan drive viscous clutch assembly (Refer to 7 - COOLING/ENGINE/FAN DRIVE VISCOUS CLUTCH - REMOVAL) .
3. Remove the front cover. (Refer to 9 - ENGINE/ENGINE BLOCK/ENGINE COVER - REMOVAL)
4. Remove the oil pump from the front cover.
