› 2.8L DIESEL
2.8L DIESEL
1. Disconnect negative battery cable.
2. Remove accessory drive belt (9)
(Refer to 7 - COOLING/ACCESSORY DRIVE/DRIVE BELTS - REMOVAL)
.

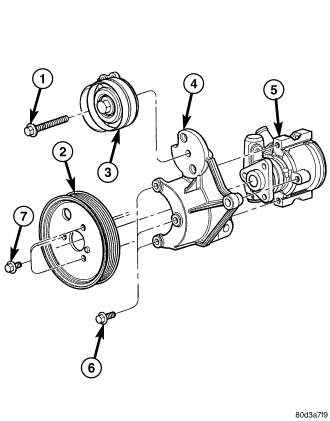

3. Remove belt tensioner retaining bolt and remove tensioner (3) from bracket (4).
