2007 Wrangler JK Factory Service Manual Not in the contents tree

2.8L DIESEL



CAUTION: The retaining bolts on the idler pulleys are left hand thread.


1. Disconnect negative battery cable.
2. Remove accessory drive belt (Refer to 7 - COOLING/ACCESSORY DRIVE/DRIVE BELTS - REMOVAL).

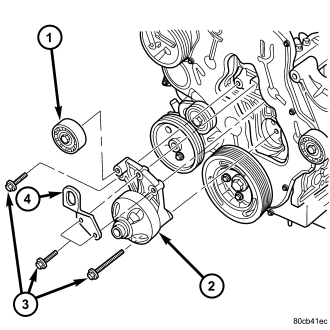

3. Remove idler pulley (1) retaining bolts and pulleys.
