INSTALLATION

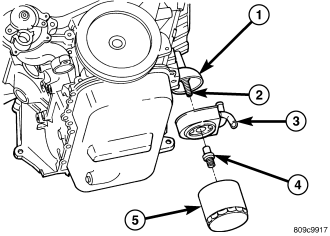

1. Lubricate seal and position oil cooler to connector fitting on oil filter adapter .
NOTE: Position the flat side of oil cooler parallel to oil pan rail.
2. Install oil cooler attachment fitting and tighten to 27 N·m (20 ft. lbs.) .
3. Install oil filter.

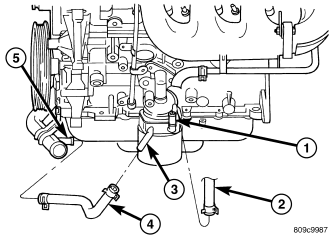

4. Connect oil cooler inlet and outlet hoses .
5. Fill cooling system (Refer to 7 - COOLING - STANDARD PROCEDURE - COOLING SYSTEM FILLING).
