INSTALLATION
NOTE: LHD model shown. RHD model similar.

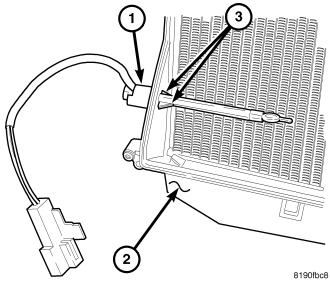

1. Install the evaporator temperature sensor (1) into the driver side of the HVAC housing (2) . Make sure the retaining tabs (3) are fully engaged to the housing.
2. Install the air distribution housing onto the HVAC housing (refer to 24 - HEATING & AIR CONDITIONING/DISTRIBUTION/HOUSING-HVAC - HOUSING-AIR DISTRIBUTION - INSTALLATION).
3. Install the HVAC housing assembly (refer to 24 - HEATING & AIR CONDITIONING/DISTRIBUTION/HOUSING-HVAC - HOUSING-HVAC ASSEMBLY - INSTALLATION).
