› REMOVAL
REMOVAL
1. Drain cooling system
(Refer to 7 - COOLING - STANDARD PROCEDURE - COOLING SYSTEM DRAINING)
.

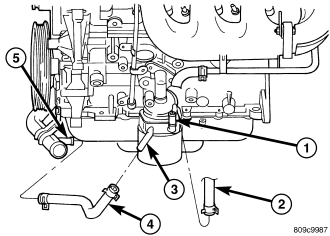

2. Disconnect oil cooler inlet and outlet hoses .

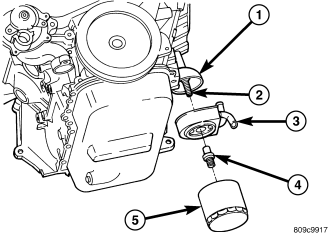

3. Remove oil filter.
4. Remove oil cooler attachment fitting .
5. Remove oil cooler.
