2014 Jeep Wrangler JK Factory Service Manual 23 - Body

CARPET, Floor

REMOVAL



NOTE:

The floor mat hook is serviced separately from the carpet, do not replace the carpet do to a broken floor mat hook.




Front Carpet

  1. Remove the front seat for the side being worked on, (Refer to 23 - Body/Seats/SEAT - Removal) .

    2.
  2. Remove the floor console, (Refer to 23 - Body/Interior/CONSOLE, Center - Removal)

    3.
  3. Remove cowl trim panel for the side being worked on, (Refer to 23 - Body/Interior/PANEL, Cowl Trim - Removal)

    4.
  4. Remove the lower B-pillar trim if required, (Refer to 23 - Body/Interior/PANEL, B-Pillar Trim - Removal) .

    5.

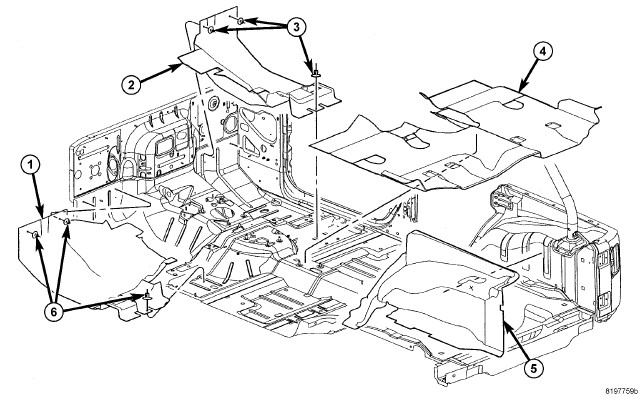

  5. Remove the stud caps (3) or (6) and remove the carpet (1) or (2) as necessary.

    6.

Rear Carpet

  1. Remove the rear seats, (Refer to 23 - Body/Seats/SEAT - Removal) .

    2.
  2. Remove the rear speaker if necessary.

    3.
  3. Remove the wheelhouse carpets (5), if necessary.

    4.
  4. Remove the load floor carpet if necessary, (Refer to 23 - Body/Interior/LOAD FLOOR/Removal) .

    5.
  5. Remove the rear carpet (4).

    6.

INSTALLATION

Front Carpet

  1. Install the carpet (1) or (2) and install the stud caps (6) or (3).

    2.
  2. Install the lower B-pillar trim, (Refer to 23 - Body/Interior/PANEL, B-Pillar Trim - Installation) .

    3.
  3. Install the cowl trim panel, (Refer to 23 - Body/Interior/PANEL, Cowl Trim - Installation) .

    4.
  4. Install the floor console, (Refer to 23 - Body/Interior/CONSOLE, Center - Installation) .

    5.
  5. Install the front seats, (Refer to 23 - Body/Seats/SEAT - Installation) .

    6.

Rear Carpet

  1. Install the rear carpet (4).

    2.
  2. Install the wheelhouse carpets (5).

    3.
  3. Install the load floor carpet, (Refer to 23 - Body/Interior/LOAD FLOOR - Installation) .

    4.
  4. Install the rear speaker.

    5.
  5. Install the rear seat, (Refer to 23 - Body/Seats/SEAT - Installation) .

    6.
