01-D6
Diagnostic trouble codes
DESCRIPTION
| DTC No. |
DTC Detection Condition |
Trouble Area |
| 01-D6 *1 |
When either of the following conditions is met:
|
|
| 01-D7 *2 |
When either of the following conditions is met:
|
- HINT:
- *1: Even if no fault is present, this trouble code may be stored depending on the battery condition or engine start voltage.
- *2: When 210 seconds have elapsed after disconnecting the power supply connector of the master component with the engine switch on (ACC or IG), this code is stored.
- *1: Even if no fault is present, this trouble code may be stored depending on the battery condition or engine start voltage.
- NOTICE:
- Before starting troubleshooting, be sure to clear DTCs to erase codes stored due to the reasons described in the HINT above. Then, check for DTCs and troubleshoot according to the output DTCs.
- The multi-display is the master unit.
- Be sure to clear and recheck DTCs after the inspection is completed to confirm that no DTCs are output.
- Before starting troubleshooting, be sure to clear DTCs to erase codes stored due to the reasons described in the HINT above. Then, check for DTCs and troubleshoot according to the output DTCs.
INSPECTION PROCEDURE
- NOTICE:
- Be sure to read DESCRIPTION before performing the following procedures.
| 1. CHECK MULTI-DISPLAY POWER SOURCE CIRCUIT |
If the power source circuit is operating normally, proceed to the next step.
| NEXT | |
| 2. IDENTIFY THE COMPONENT WHICH HAS STORED THIS CODE |

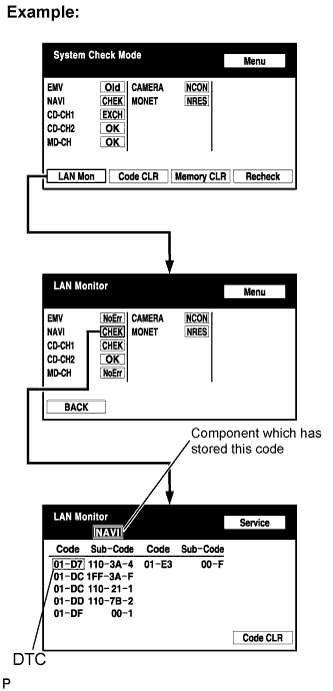

Enter the diagnostic mode.

Press the "LAN Mon" switch to change to "LAN Monitor" mode.
Identify the component which has stored this code.
Component Table: Display
Component
AUDIO H/U
Radio receiver
DSP-AMP
Stereo component amplifier
G/W
Gateway ECU
NAVI
Navigation ECU
CAMERA-C
Television camera ECU
- HINT:
- "NAVI" is the component which has stored this code in the example shown in the illustration.
| NEXT | |
| 3. CHECK POWER SOURCE CIRCUIT OF COMPONENT WHICH HAS STORED THIS CODE |
Inspect the power source circuit of the component which has stored this code.If the power source circuit is operating normally, proceed to the next step.
Component Table: Component
Proceed to
Radio receiver (AUDIO H/U)
Radio receiver power source circuit (Click here)
Stereo component amplifier (DSP-AMP)
Stereo component amplifier power source circuit (Click here)
Gateway ECU (G/W)
Gateway ECU power source circuit (Click here)
Navigation ECU (NAVI)
Navigation ECU power source circuit (Click here)
Television camera ECU
(CAMERA-C)
Television camera ECU power source circuit (Click here)
| NEXT | |
| 4. CHECK RADIO RECEIVER |
![]() ![]() |
Disconnect the radio receiver connectors.
Measure the resistance according to the value(s) in the table below.
- Standard resistance:
Tester Connection
Condition
Specified Condition
ATX+ (J66-5) -
ATX- (J66-15)
Always
60 to 80 Ω
TX+ (J63-9) -
TX- (J63-10)
Always
60 to 80 Ω
|
|
||||
| OK | |
| 5. CHECK HARNESS AND CONNECTOR (MULTI-DISPLAY - COMPONENT WHICH HAS STORED THIS CODE) |
- HINT:
- For details of the connectors, refer to "TERMINALS OF ECU" (Click here).
Referring to the AVC-LAN wiring diagram below, check the AVC-LAN circuit between the multi-display and the component which has stored this code.
Disconnect all connectors between the multi-display and the component which has stored this code.
Check for an open or short in the AVC-LAN circuit between the multi-display and the component which has stored this code.
- OK:
- There is no open or short circuit.


|
|
||||
| OK | |
| 6. REPLACE COMPONENT WHICH HAS STORED THIS CODE |
Replace the component which has stored this code with a normal one and check if the same problem occurs again.
- OK:
- Same problem does not occur.
|
|
||||
| OK | ||
| ||
