| Last Modified: 11-27-2007 | 1.6 A | |
| Service Category: Brake | Section: Brake Control/Dynamic Control System | |
| Model Year: 2008 | Model: LX570 | Doc ID: RM000000SS2017X |
| Title: BRAKE CONTROL / DYNAMIC CONTROL SYSTEMS: YAW RATE AND DECELERATION SENSOR: INSTALLATION (2008 LX570) | ||
INSTALLATION

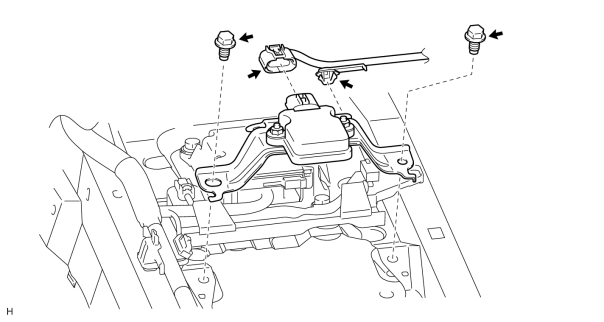

1. INSTALL YAW RATE SENSOR
(a) Connect the sensor connector and then attach the clamp to the hole of the sensor bracket.
NOTICE:
Securely connect the connector.
(b) Install the yaw rate sensor with the 2 bolts.
Torque: 15 N·m (148 kgf·cm, 11 ft·lbf)
NOTICE:
- Make sure that the sensor is oriented correctly.
- If the sensor is dropped, replace it.
-
When installing the sensor, make sure to avoid impacts to the sensor.
2. INSTALL REAR CONSOLE BOX SUB-ASSEMBLY (w/o Cool Box)
(a) Install the rear console box sub-assembly
.
3. INSTALL COOLING BOX ASSEMBLY (w/ Cool Box)
(a) Install the cooling box assembly
.
4. INSTALL FRONT SEAT ASSEMBLY LH (w/ Cool Box)
(a) Install the front seat assembly LH
.
5. CHARGE REFRIGERANT (w/ Cool Box)
6. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
NOTICE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected
.
7. WARM UP ENGINE (w/ Cool Box)
8. CHECK FOR REFRIGERANT GAS LEAK (w/ Cool Box)
9. INSTALL UPPER RADIATOR SUPPORT SEAL (w/ Cool Box)
10. INSTALL ENGINE ROOM SIDE COVER RH (w/ Cool Box)
11. INSTALL ENGINE ROOM SIDE COVER LH (w/ Cool Box)
12. PERFORM YAW RATE SENSOR ZERO POINT CALIBRATION
(a) Perform the yaw rate sensor zero point calibration
.
13. CHECK YAW RATE SENSOR SIGNAL
(a) Check the yaw rate sensor signal
.
|
|
