| Last Modified: 11-27-2007 | 1.6 A | |
| Service Category: Audio/Visual/Telematics | Section: Audio/Video | |
| Model Year: 2008 | Model: LX570 | Doc ID: RM000000VEO00GX |
| Title: AUDIO / VIDEO: INSTRUMENT PANEL SPEAKER: REMOVAL (2008 LX570) | ||
REMOVAL
HINT:
- Use the same procedures for the LH side and RH side.
- The procedures listed below are for the LH side.
1. REMOVE ENGINE ROOM SIDE COVER LH
2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
NOTICE:
-
w/ Navigation System:
After the engine switch is turned off, the HDD navigation system requires approximately 6 minutes to record various types of memory and settings. As a result, after turning the engine switch off, wait 6 minutes or more before disconnecting the cable from the negative (-) battery terminal.
-
When disconnecting the cable, some systems need to be initialized after the cable is reconnected
.
3. REMOVE NO. 3 INSTRUMENT PANEL REGISTER ASSEMBLY
4. REMOVE NO. 4 INSTRUMENT PANEL REGISTER ASSEMBLY
5. REMOVE MULTI-DISPLAY ASSEMBLY WITH BRACKET (w/o Navigation System)
6. REMOVE DISPLAY AND NAVIGATION MODULE DISPLAY WITH BRACKET (w/ Navigation System)
7. REMOVE NO. 1 SPEAKER OPENING COVER ASSEMBLY
|
(a) Detach the 7 clips and remove the opening cover. |
8. REMOVE FRONT NO. 4 SPEAKER ASSEMBLY
(a) Remove the 2 bolts.
(b) Remove the speaker and disconnect the speaker connector.
NOTICE:
Do not touch the cone part of the speaker.
9. REMOVE FRONT ASSIST GRIP SUB-ASSEMBLY
10. REMOVE FRONT PILLAR GARNISH LH
11. REMOVE NO. 1 INSTRUMENT PANEL SPEAKER PANEL SUB-ASSEMBLY
|

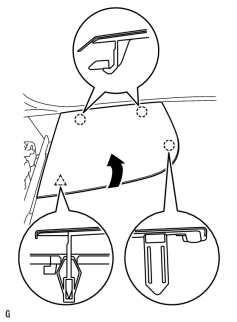

(a) Detach the claw and clip on the near side. Then, raise the panel towards the front of the vehicle in the direction of the arrow and detach the 2 claws to remove the panel. |
12. REMOVE FRONT NO. 2 SPEAKER ASSEMBLY
(a) Remove the 2 bolts.
(b) Remove the speaker and disconnect the speaker connector.
NOTICE:
Do not touch the cone part of the speaker.
|
|
