Title: 3UR-FE COOLING: WATER PUMP: REMOVAL (2008 LX570)

REMOVAL

1. REMOVE V-BANK COVER SUB-ASSEMBLY 3UR-FE ENGINE MECHANICAL: ENGINE ASSEMBLY: REMOVAL (2008 LX570)+

2. REMOVE ENGINE ROOM SIDE COVER LH EXTERIOR PANELS / TRIM: RADIATOR GRILLE: REMOVAL (2008 LX570)+

3. REMOVE ENGINE ROOM SIDE COVER RH EXTERIOR PANELS / TRIM: RADIATOR GRILLE: REMOVAL (2008 LX570)+

4. REMOVE UPPER RADIATOR SUPPORT SEAL EXTERIOR PANELS / TRIM: RADIATOR GRILLE: REMOVAL (2008 LX570)+

5. REMOVE FRONT FENDER SPLASH SHIELD SUB-ASSEMBLY LH EXTERIOR PANELS / TRIM: FRONT BUMPER: REMOVAL (2008 LX570)+

6. REMOVE FRONT FENDER SPLASH SHIELD SUB-ASSEMBLY RH EXTERIOR PANELS / TRIM: FRONT BUMPER: REMOVAL (2008 LX570)+

7. REMOVE NO. 1 ENGINE UNDER COVER SUB-ASSEMBLY 3UR-FE INTAKE / EXHAUST: EXHAUST MANIFOLD: REMOVAL (2008 LX570)+

8. DRAIN ENGINE COOLANT 3UR-FE COOLING: COOLANT: REPLACEMENT (2008 LX570)+

9. REMOVE AIR CLEANER HOSE ASSEMBLY 3UR-FE INTAKE / EXHAUST: INTAKE MANIFOLD: REMOVAL (2008 LX570)+

10. REMOVE AIR CLEANER ASSEMBLY 3UR-FE ENGINE MECHANICAL: ENGINE ASSEMBLY: REMOVAL (2008 LX570)+

11. REMOVE NO. 1 RADIATOR HOSE

12. REMOVE NO. 2 RADIATOR HOSE

13. REMOVE FAN SHROUD 3UR-FE COOLING: RADIATOR: REMOVAL (2008 LX570)+

14. REMOVE NO. 1 WATER BY-PASS HOSE 3UR-FE LUBRICATION: OIL PUMP: REMOVAL (2008 LX570)+

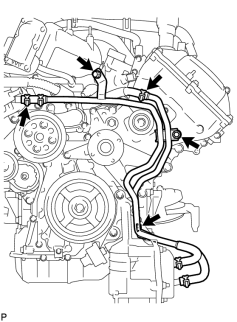

15. DISCONNECT NO. 2 WATER BY-PASS PIPE SUB-ASSEMBLY (w/ Oil Cooler)



(a) Disconnect the No. 6 water by-pass hose.

(b) Remove the 3 bolts.

(c) Disconnect the water by-pass pipe with water hose.

16. REMOVE WATER INLET HOUSING

(a) Disconnect the No. 2 and No. 3 air hoses.

(b) Disconnect the air pump connector.

(c) Disconnect the air pump connector clamp holder.

(d) Using a clip remover, detach the wire harness clamp.

(e) Disconnect the No. 5 water by-pass hose.

(f) Remove the air tube bracket bolt.

(g) Disconnect the No. 3 water by-pass hose and remove the 3 bolts and water inlet housing.

(h) Remove the gasket from the water pump.

17. REMOVE WATER PUMP PULLEY

(a) Using SST, hold the water pump pulley.

SST: 09960-10010

09962-01000

09963-01000

(b) Remove the 4 bolts and water pump pulley.

18. REMOVE WATER PUMP ASSEMBLY

(a) Remove the 8 bolts, water pump and gasket.
