| Title: SEAT: FRONT SEAT CUSHION HEATER: INSTALLATION (2008 LX570) | ||
INSTALLATION
CAUTION:
Wear protective gloves. Sharp areas on the parts may injure your hands.
HINT:
- Use the same procedures for the LH side and RH side.
- The procedures listed below are for the LH side.
1. INSTALL FRONT SEAT CUSHION HEATER ASSEMBLY LH
NOTICE:
- As the front passenger side seat has an occupant classification system, its front seat cushion cannot be disassembled.
- If replacing the front passenger side seat, replace the No. 1 seat cushion assembly (cushion set, occupant detection sensor, occupant classification ECU and 2 nuts).
-
When the No. 1 seat cushion assembly (cushion set, occupant detection sensor, occupant classification ECU and 2 nuts) is replaced, the previous ECU data must be saved in the Techstream and loaded into the new ECU
.
-
After replacing the No. 1 seat cushion assembly (cushion set, occupant detection sensor, occupant classification ECU and 2 nuts), if there is a malfunction in the occupant classification system, perform zero point calibration and the sensitivity check
.

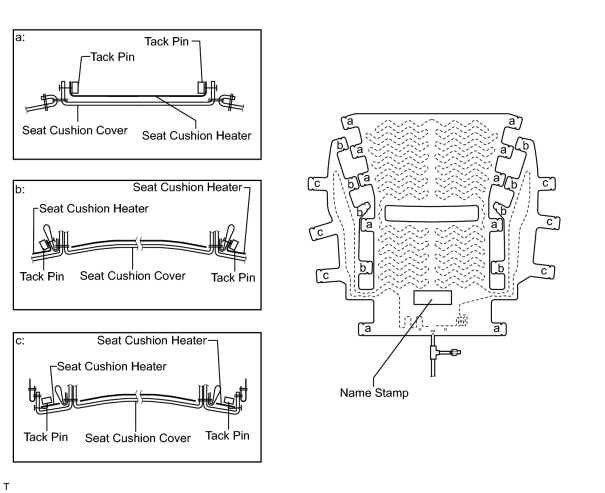

(a) Set the seat cushion heater with the name stamp side facing the seat cushion cover.
(b) Install the seat cushion heater with new tack pins.
2. INSTALL FRONT SEPARATE TYPE SEAT CUSHION COVER
3. INSTALL SEAT CUSHION COVER WITH PAD
4. INSTALL FRONT POWER SEAT SWITCH LH
5. INSTALL FRONT INNER SEAT CUSHION SHIELD LH
6. INSTALL FRONT SEAT INNER BELT ASSEMBLY LH
7. INSTALL FRONT SEAT CUSHION SHIELD LH
8. INSTALL RECLINING POWER SEAT SWITCH KNOB
9. INSTALL SLIDE AND VERTICAL POWER SEAT SWITCH KNOB
10. INSTALL FRONT SEAT ASSEMBLY LH
(a) Install the front seat assembly
.
11. INSTALL ENGINE ROOM SIDE COVER LH
|
|
