| Last Modified: 11-27-2007 | 1.6 A | |
| Service Category: Suspension | Section: Suspension Control System | |
| Model Year: 2008 | Model: LX570 | Doc ID: RM0000039ZN001X |
| Title: SUSPENSION CONTROL: CONTROL VALVE ASSEMBLY: REMOVAL (2008 LX570) | ||
REMOVAL
1. REMOVE TAILPIPE ASSEMBLY
2. REMOVE CENTER EXHAUST PIPE ASSEMBLY
3. REMOVE HEIGHT CONTROL UNIT INSULATOR
(a) Remove the 3 bolts and insulator from the control unit.
4. REMOVE CLAMP
(a) Remove the clamp from the 3 height control tubes.
5. DISCHARGE SUSPENSION FLUID PRESSURE
6. REMOVE NO. 7 HEIGHT CONTROL TUBE
7. DISCONNECT REAR NO. 4 HEIGHT CONTROL TUBE
|
(a) Disconnect the connector. |
(b) Remove the union bolt and gasket, then disconnect the rear No. 4 height control tube from the control valve.

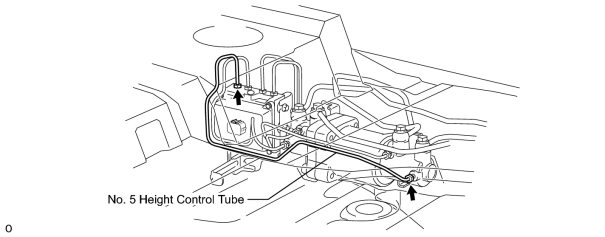

8. REMOVE NO. 5 HEIGHT CONTROL TUBE
(a) Using a union nut wrench, remove the No. 5 height control tube from the control valve and center cylinder.
9. REMOVE NO. 5 HEIGHT CONTROL TUBE LH
(a) Using a union nut wrench, remove the No. 5 height control tube LH from the control valve and center cylinder.
10. REMOVE NO. 6 HEIGHT CONTROL TUBE
(a) Using a union nut wrench, remove the No. 6 height control tube from the control valve and center cylinder.

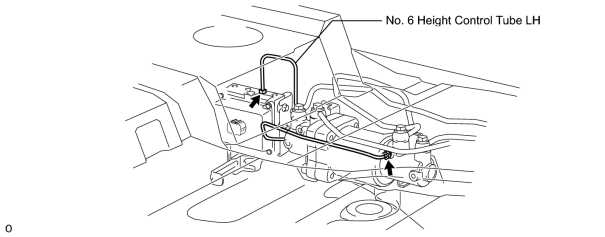

11. REMOVE NO. 6 HEIGHT CONTROL TUBE LH
(a) Using a union nut wrench, remove the No. 6 height control tube LH from the control valve and center cylinder.
12. REMOVE NO. 1 HEIGHT CONTROL VALVE ASSEMBLY
(a) Remove the 3 nuts and control valve.
(b) Remove the 3 bolt holders and 3 bolt cushions from the control valve.
|
|
