| Title: HEATING / AIR CONDITIONING: DUCT TEMPERATURE SENSOR: INSTALLATION (2008 LX570) | ||
INSTALLATION

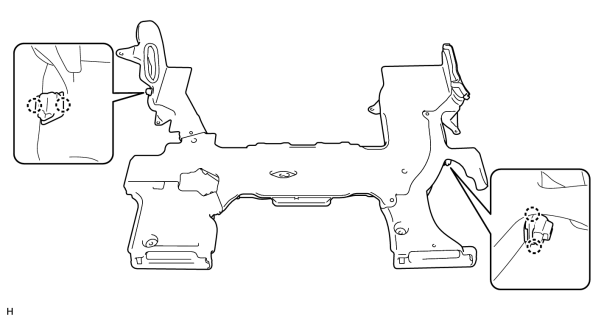

1. INSTALL COOLER THERMISTOR
(a) Attach the 4 claws to install the 2 sensors.

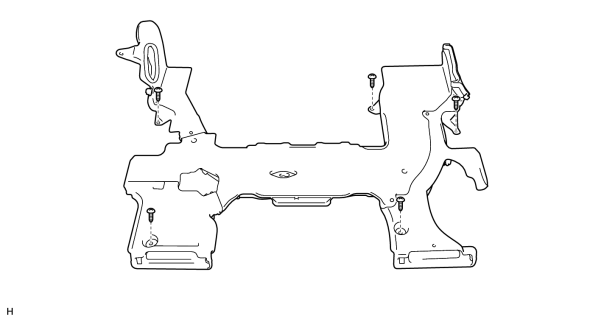

2. INSTALL REAR NO. 6 AIR DUCT
(a) Install the duct with the 5 screws.
(b) Connect the 2 connectors.
3. INSTALL FRONT FLOOR CARPET ASSEMBLY
(a) Install the floor carpet.
(b) Install the 2 clips.
4. INSTALL REAR NO. 1 SEAT PROTECTOR
5. INSTALL REAR NO. 2 SEAT PROTECTOR
6. INSTALL FRONT QUARTER TRIM PANEL ASSEMBLY LH
7. INSTALL REAR SEAT COVER CAP (for Semi Power Seat)
8. INSTALL FRONT QUARTER TRIM PANEL ASSEMBLY RH
9. INSTALL REAR SEAT COVER CAP (for Semi Power Seat)
10. INSTALL REAR FLOOR MAT SUPPORT PLATE REAR
11. INSTALL REAR DOOR SCUFF PLATE LH
12. INSTALL REAR DOOR SCUFF PLATE RH
13. INSTALL REAR STEP COVER
14. INSTALL REAR NO. 2 SEAT ASSEMBLY LH
(a) Install the rear No. 2 seat assembly
.
15. INSTALL REAR NO. 2 SEAT ASSEMBLY RH
(a) Install the rear No. 2 seat assembly
.
16. INSTALL REAR NO. 1 SEAT ASSEMBLY LH
(a) Install the rear No. 1 seat assembly
.
17. INSTALL REAR NO. 1 SEAT ASSEMBLY RH
(a) Install the rear No. 1 seat assembly
.
18. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
NOTICE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected
.
19. INSTALL ENGINE ROOM SIDE COVER LH
20. CHECK SRS WARNING LIGHT
(a) Check the SRS warning light
.
|
|
