| Title: SUSPENSION CONTROL: FRONT ACCELERATION SENSOR: INSTALLATION (2008 LX570) | ||
INSTALLATION
1. INSTALL ACCELERATION SENSOR (for Driver Side)
|
(a) Install the sensor with the bolt. Torque: 8.0 N·m (82 kgf·cm, 71 in·lbf) |
(b) Connect the connector.
2. INSTALL ACCELERATION SENSOR (for Front Passenger Side)
|
(a) Install the sensor with the bolt. Torque: 8.0 N·m (82 kgf·cm, 71 in·lbf) |
(b) Connect the connector.

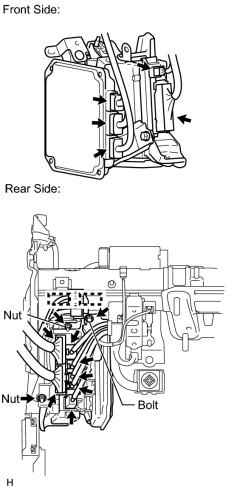

3. INSTALL STEERING CONTROL ECU WITH JUNCTION BLOCK
|
(a) Front Side: (1) Connect the 5 connectors. |
(b) Rear Side:
(1) Install the steering control ECU with junction block to the vehicle with the bolt and 2 nuts.
Torque: 8.0 N·m (82 kgf·cm, 71 in·lbf)
(2) Attach the 2 clamps.
(3) Connect the 7 connectors.
4. INSTALL LOWER NO. 2 INSTRUMENT PANEL FINISH PANEL
5. INSTALL INSTRUMENT PANEL BOX DOOR KNOB
6. INSTALL FRONT PASSENGER SIDE KNEE AIRBAG ASSEMBLY
7. INSTALL COWL SIDE TRIM BOARD RH
8. INSTALL NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY
9. INSTALL FRONT DOOR SCUFF PLATE RH
10. INSTALL NO. 3 INSTRUMENT CLUSTER FINISH PANEL GARNISH
11. INSTALL NO. 4 INSTRUMENT PANEL REGISTER ASSEMBLY
12. INSTALL INSTRUMENT SIDE PANEL RH
13. INSTALL DRIVER SIDE KNEE AIRBAG ASSEMBLY
14. INSTALL INSTRUMENT PANEL BOX ASSEMBLY
15. INSTALL LOWER NO. 1 INSTRUMENT PANEL FINISH PANEL
16. INSTALL COWL SIDE TRIM BOARD LH
17. INSTALL NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY
18. INSTALL FRONT DOOR SCUFF PLATE LH
19. INSTALL NO. 1 SWITCH HOLE BASE
20. INSTALL INSTRUMENT SIDE PANEL LH
21. INSTALL LOWER CENTER INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY
22. INSTALL INNER NO. 1 INSTRUMENT PANEL BRACKET COVER RH
23. INSTALL LOWER INSTRUMENT PANEL PAD SUB-ASSEMBLY RH
24. INSTALL INNER NO. 1 INSTRUMENT PANEL BRACKET COVER LH
25. INSTALL LOWER INSTRUMENT PANEL PAD SUB-ASSEMBLY LH
26. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
NOTICE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected
.
27. CHECK SRS WARNING LIGHT
(a) Check the SRS warning light
.
|
|
