Suzuki Vitara (LY) 2016-2017 · Service Manual K14C · Schematic and Routing Diagram

Contents › 1A Engine General Information and Diagnosis › K14C › Schematic and Routing Diagram

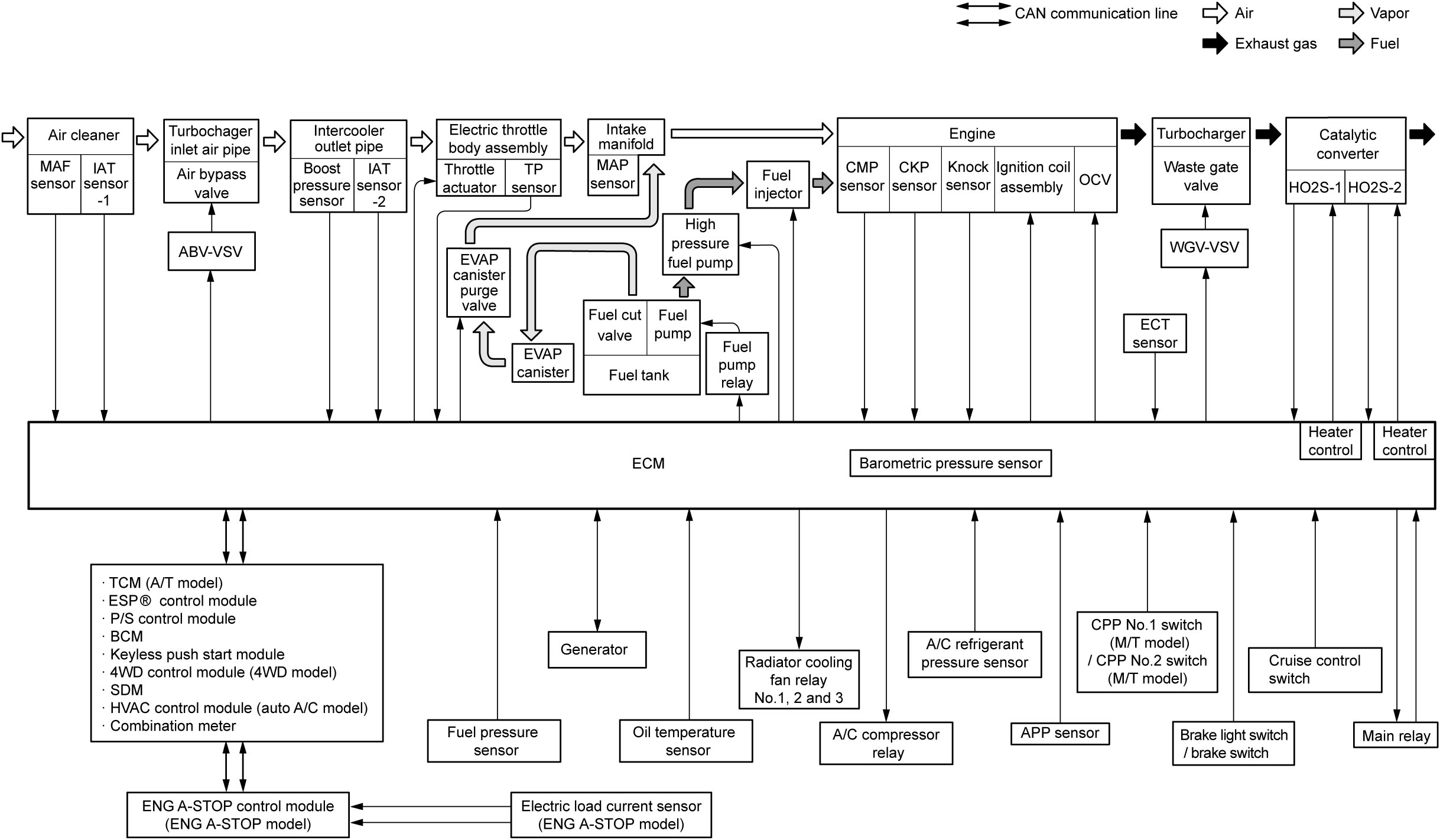

Engine and Emission Control System Flow Diagram

Precautions: General safety (00)

← Engine and Emission Control System Diagram Electronic Control System Circuit Diagram →
