DTC P0482 / P0696

Precautions: General safety (00)

DTC Detecting Condition and Trouble Area
DTC detecting condition Trouble area
P0482: Fan 3 Control Circuit
Radiator cooling fan relay No.3 drive circuit is shorted to ground or open.
(3 D/C detection logic but MIL does not light up)
•Radiator cooling fan relay No.3 and/or its circuit
•ECM
P0696: Fan 3 Control Circuit High
Radiator cooling fan relay No.3 drive circuit is shorted to power supply.
(3 D/C detection logic but MIL does not light up)

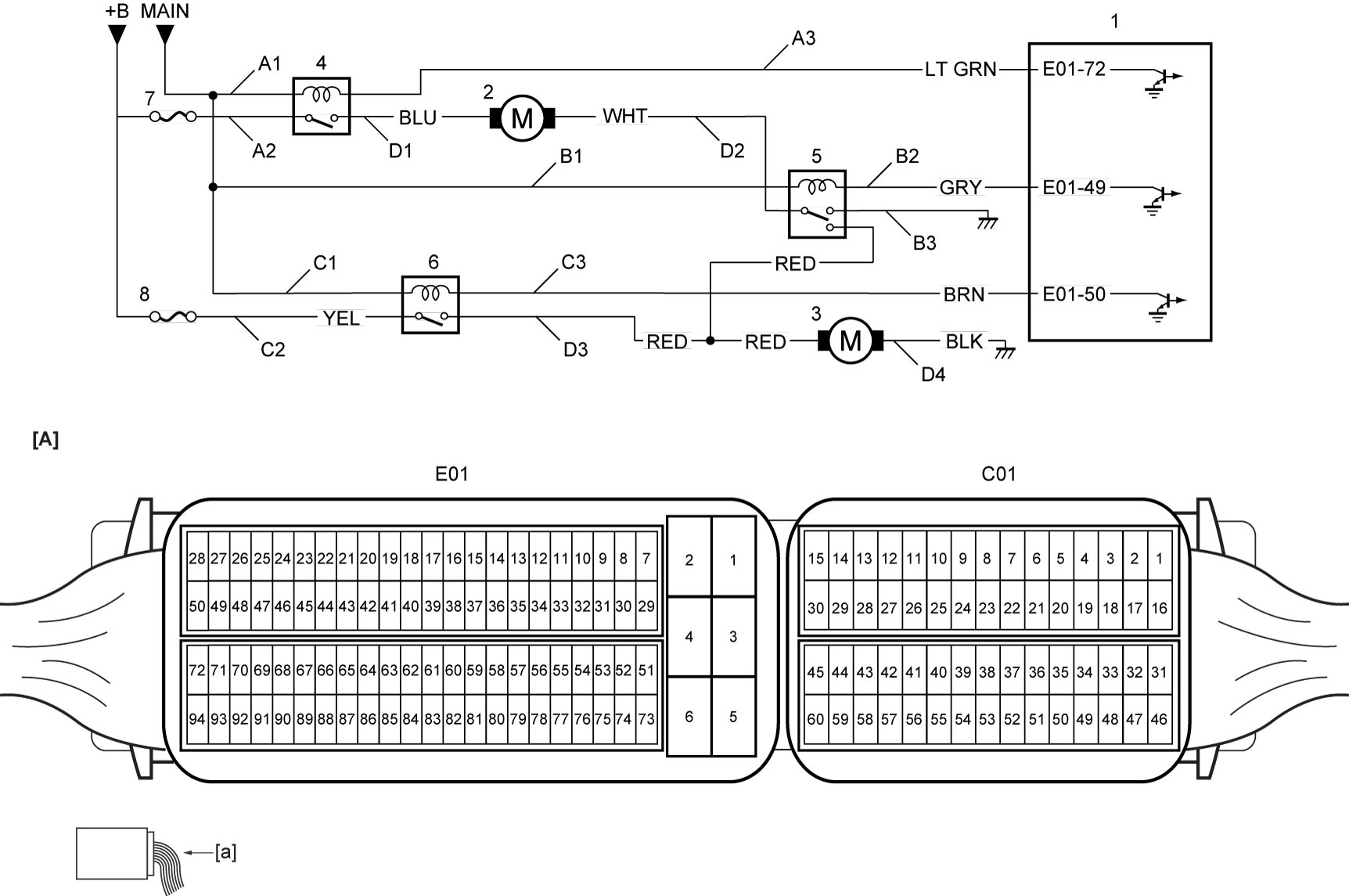

Circuit Diagram
[A]: ECM connector (View: [a]) D2: Radiator cooling fan ground circuit
A1: Radiator cooling fan relay No.1 power supply circuit (coil side) D3: Radiator cooling sub fan power supply circuit
A2: Radiator cooling fan relay No.1 power supply circuit (switch side) D4: Radiator cooling sub fan ground circuit
A3: Radiator cooling fan relay No.1 drive circuit 1. ECM
B1: Radiator cooling fan relay No.2 power supply circuit (coil side) 2. Radiator cooling fan motor
B2: Radiator cooling fan relay No.2 drive circuit 3. Radiator cooling sub fan motor
B3: Radiator cooling fan relay No.2 ground circuit 4. Radiator cooling fan relay No.1
C1: Radiator cooling fan relay No.3 power supply circuit (coil side) 5. Radiator cooling fan relay No.2
C2: Radiator cooling fan relay No.3 power supply circuit (switch side) 6. Radiator cooling fan relay No.3
C3: Radiator cooling fan relay No.3 drive circuit 7. “RDTR” fuse
D1: Radiator cooling fan power supply circuit 8. “RDTR2” fuse
DTC Confirmation Procedure
NOTE:
Check that the following condition is met in this “DTC Confirmation Procedure”.
•Battery voltage > 3 V
1)Warm up engine to normal operating temperature.
2)Keep engine at idle speed until engine coolant temperature reaches 103 °C (217 °F) or more.
DTC Troubleshooting
Step Action Yes No
1
Was “Engine and Emission Control System Check” performed?
Go to Step 2.
2
Radiator cooling fan relay No.3 power supply circuit (coil side) check
1)With ignition “OFF”, remove radiator cooling ran relay No.3.
2)Check for proper terminal connection to radiator cooling fan relay No.3 connector.
3)If connections are OK, set ignition “ON”.
4)Check that voltage between “C1” and ground is battery voltage.
Is check result OK?
Go to Step 3.
Repair or replace defective wire harness.
3
Radiator cooling fan relay No.3 check
1)Check radiator cooling fan relay No.3. icon
Is check result OK?
Go to Step 4.
Replace radiator cooling fan relay No.3.
4
Radiator cooling fan relay No.3 drive circuit check
1)With ignition “OFF”, disconnect “C01” and “E01” connectors from ECM.
2)Check for proper terminal connection to “C01” and “E01” connectors.
3)If connections are OK, check the following points.
•Resistance of “C3” circuit: less than 1 Ω
•Resistance between “C3” circuit and ground: infinity
•Resistance between “C3” circuit terminal and other terminal at radiator cooling fan relay No.3 connector: infinity
•Voltage of “C3” circuit: approx. 0 V (When ignition is “ON”)
Is check result OK?
Replace ECM and recheck DTC. icon
Repair or replace defective wire harness.
