DTC P0500
Precautions: General safety (00)
DTC Detecting Condition and Trouble Area
| DTC detecting condition | Trouble area |
|---|---|
|
P0500: Vehicle Speed Sensor “A” Any of the following condition is met.
•Vehicle speed is slower than 4 km/h (2 mile/h) for 12 sec. at fuel cut condition. (3 D/C detection logic)•Vehicle speed is not inputted by CAN communication. |
•CAN communication line
•Wheel speed sensor •ESP® control module •ECM |

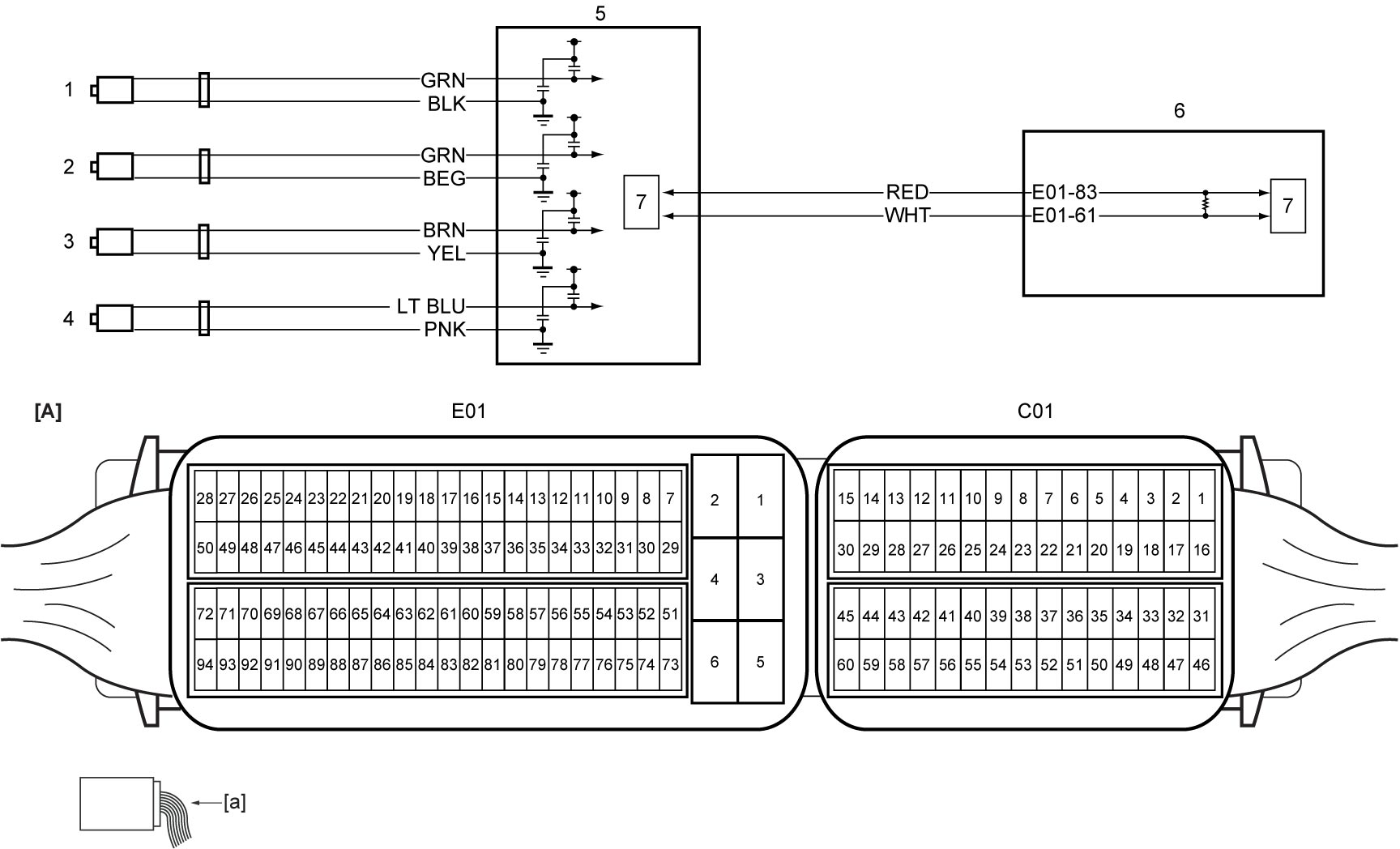

Circuit Diagram
| [A]: | ECM connector (View: [a]) | 3. | Left-rear wheel speed sensor | 6. | ECM |
| 1. | Left-front wheel speed sensor | 4. | Right-rear wheel speed sensor | 7. | CAN driver |
| 2. | Right-front wheel speed sensor | 5. | ESP® control module |
DTC Confirmation Procedure
WARNING:
If you do not select a suitable route and take proper precautions when performing a road test, an accident can occur.
•Select a level road with no traffic to minimize the risk of accident.
•Perform the test extremely carefully.
•Perform the road test using 2 persons, a driver and a tester.
•Perform the test extremely carefully.
•Perform the road test using 2 persons, a driver and a tester.
1)Warm up engine to normal operating temperature.
2)With engine speed at 1,000 to 4,250 rpm drive vehicle at 60 km/h (37 mile/h) constantly for 1 min. or more at 5th gear (M/T model) or D range (A/T model). (Keep throttle valve opening constant in this step.)
3)Release accelerator pedal, and keep vehicle coasting for 10 sec. in engine braking condition. (Fuel cut)
DTC Troubleshooting
| Step | Action | Yes | No |
|---|---|---|---|
| 1 |
Was “Engine and Emission Control System Check” performed?
|
Go to Step 2.
|
|
| 2 |
DTC check
Is there any CAN-DTC detected?
|
Go to troubleshooting for CAN-DTC.
|
Go to Step 3.
|
| 3 |
DTC check
1)Check DTC in ESP® control module.
Is there any DTC(s) detected?
|
Go to troubleshooting for applicable DTC.
|
Replace ECM and recheck DTC.
|
