DTC P0500
Precautions: General safety (00)
DTC Detecting Condition and Trouble Area
| DTC detection condition | Trouble area |
|---|---|
|
P0500: Vehicle Speed Sensor “A” Invalid vehicle speed signal is received from ESP® control module via CAN. (3 D/C detection logic) |
•CAN communication line
•Front wheel speed sensor and/or its circuit •Front wheel speed sensor encoder •ESP® control module •ECM |

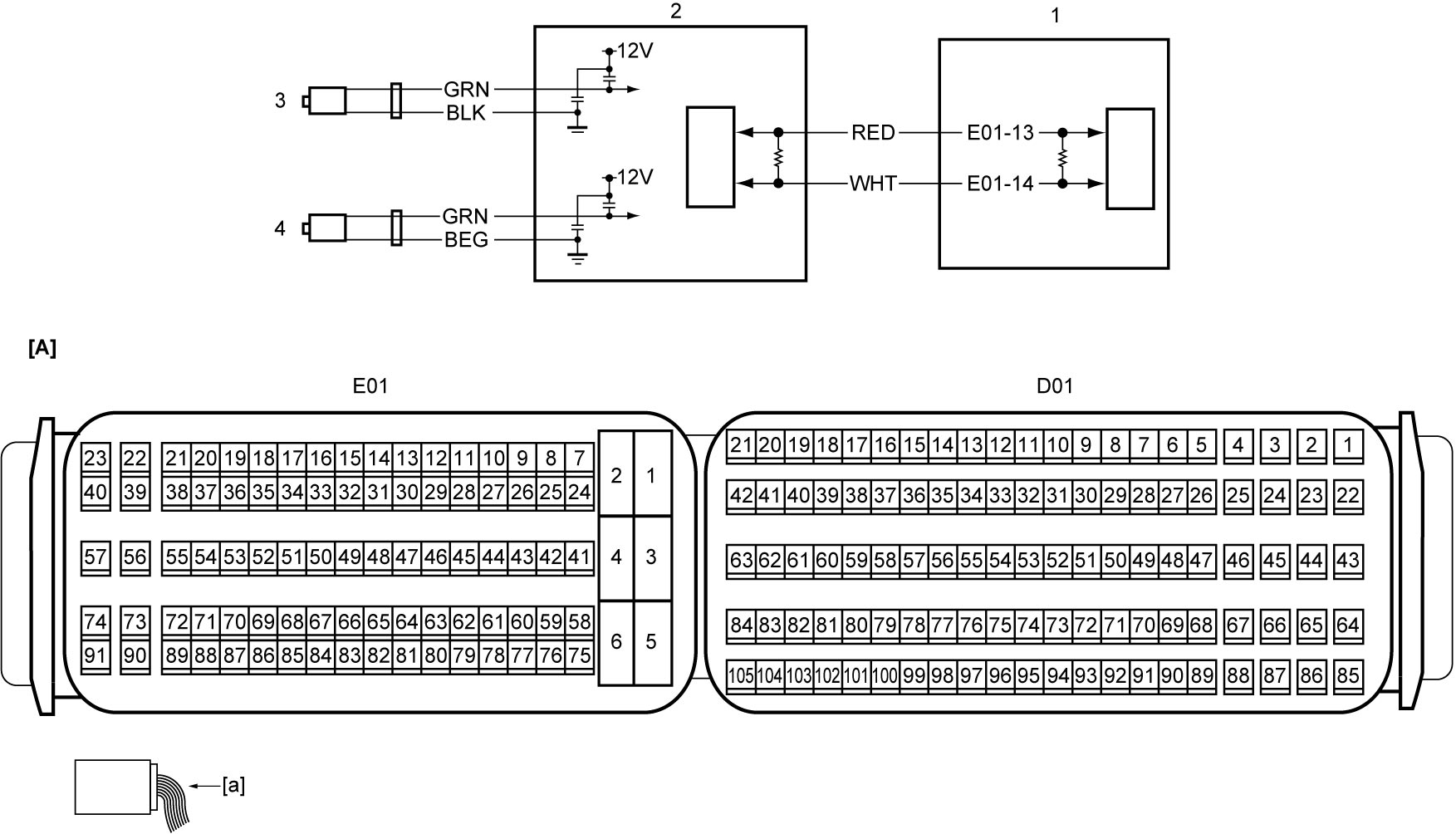

Circuit Diagram
| [A]: | ECM connector (View: [a]) | 2. | ESP® control module | 4. | Right-front wheel speed sensor |
| 1. | ECM | 3. | Left-front wheel speed sensor |
DTC Troubleshooting
| Step | Action | Yes | No |
|---|---|---|---|
| 1 |
Was “Engine and Emission Control System Check” performed?
|
Go to Step 2.
|
|
| 2 |
DTC check
1)When ignition is “OFF”, connect SUZUKI scan tool to DLC.
2)Set ignition “ON”.
3)Check that DTC is not detected in ESP® control module.
Is check result OK?
|
Go to Step 3.
|
Go to troubleshooting for detected DTCs.
|
| 3 |
DTC check
1)Check DTC related to CAN communication is not detected in ECM and ESP® control module.
Is check result OK?
|
Go to Step 4.
|
Go to troubleshooting for detected DTCs.
|
| 4 |
ECM replacement
1)Replace ECM and check that DTC is not detected.
 Is check result OK?
|
End.
|
Replace ESP® control module and recheck DTC.
|
