DTC P1542
Precautions: General safety (00)
DTC Detecting Condition and Trouble Area
| DTC detecting condition | Trouble area |
|---|---|
|
P1542: Engine Oil Pressure Sensor / Switch Circuit (Sensor2) Low oil pressure is not recognized when ignition is “ON” with engine not running. (1 D/C detection logic) |
•Oil pressure switch-2 and/or its circuit
•ECM |

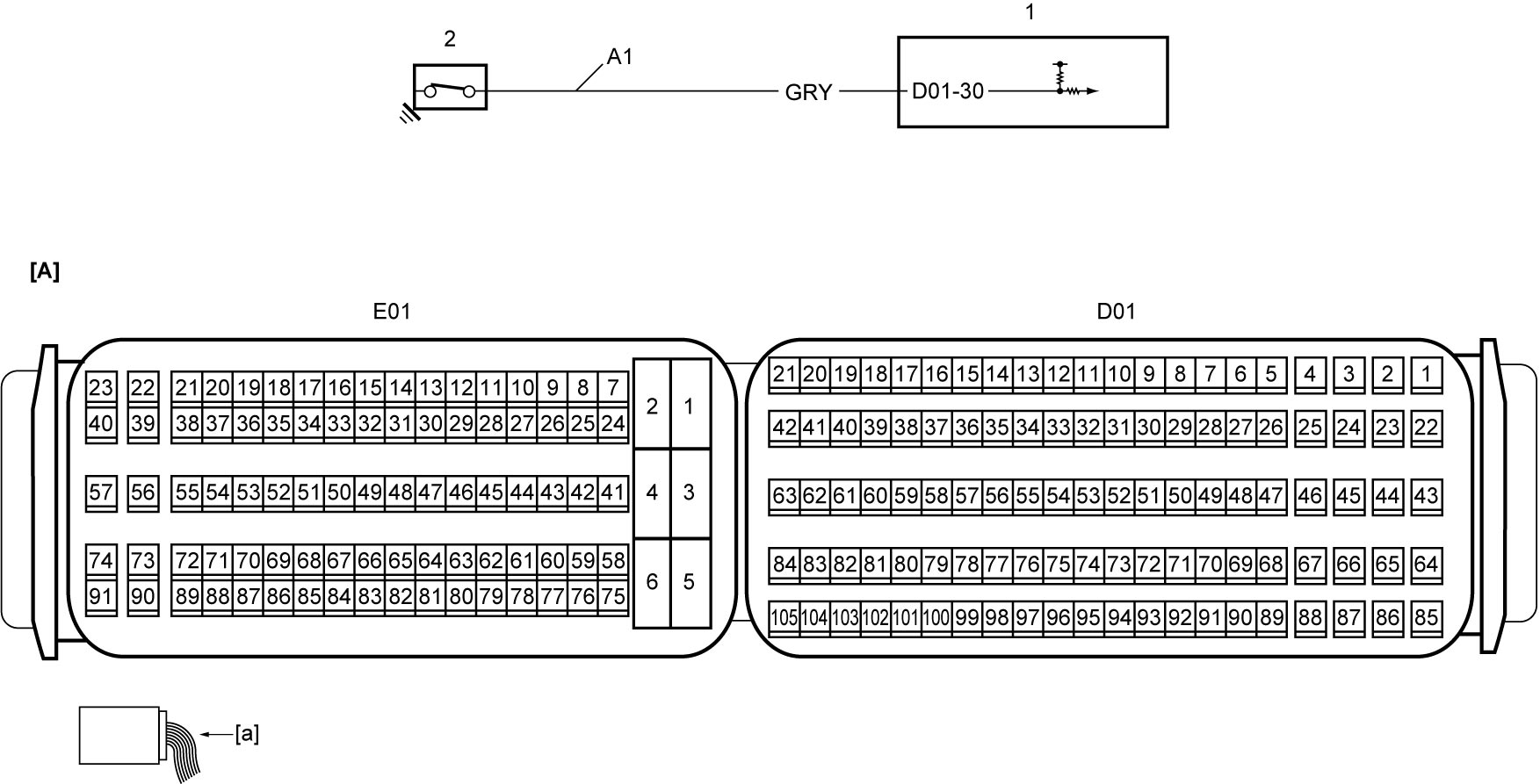

Circuit Diagram
| [A]: | ECM connector (View: [a]) | 1. | ECM |
| A1: | Oil pressure switch-2 signal circuit | 2. | Oil pressure switch-2 |
DTC Troubleshooting
| Step | Action | Yes | No |
|---|---|---|---|
| 1 |
Was “Engine and Emission Control System Check” performed?
|
Go to Step 2.
|
|
| 2 |
Oil pressure switch-2 signal circuit check
1)Check oil pressure switch-2 signal circuit according to Step 2 of DTC P1541:D16AA.
Is check result OK?
|
Go to Step 3.
|
Repair or replace defective wire harness.
|
| 3 |
Oil pressure switch-2 check
1)Check oil pressure switch-2.
Is check result OK?
|
Replace ECM and recheck DTC.
|
Replace oil pressure switch-2.
|
